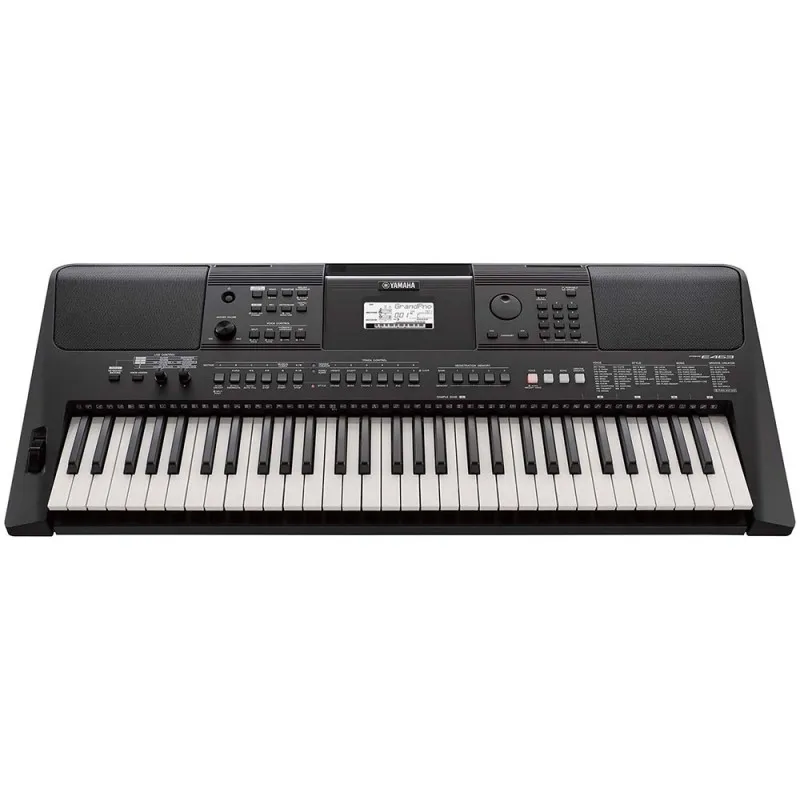

Keyboard PSR-E463 Yamaha

Color/Finish

Body Color Black

Size/Weight

Dimensions Width 946 mm (37-1/4)
Height 139 mm (5-1/2)
Depth 404 mm (15-15/16)
Weight Weight 6.6 kg (14 lb, 9 oz) not including batteries

Control Interface

Keyboard Number of Keys 61
Touch Response Soft, Medium, Hard, Fixed
Other Controllers Pitch Bend Yes
Control Knobs Yes
Display Type LCD (Liquid Crystal Display)
Language English
Panel Language English

Voices

Tone Generation Tone Generating Technology AWM Stereo Sampling
Polyphony Number of Polyphony (Max.) 48
Preset Number of Voices 758 (237 Panel Voices + 24 Drum/SFX kits + 40 Arpeggio + 457 XGlite voices)
Featured Voices 8 Sweet! Voices, 3 Cool! Voices, 3 Dynamic Voices
Compatibility GM Yes
XGlite Yes

Effects

Types DSP 10 types (assignable on control knobs)
Reverb 12 types
Chorus 5 types
Master EQ 6 types
Harmony 26 types
Functions Dual/Layers Yes
Split Yes
Arpeggio 150 types
Melody Suppressor Yes
Crossfade Yes (for Internal/AUX IN)

Accompaniment Styles

Preset Number of Preset Styles 235

Fingering Multi finger

Style Control ACMP ON/OFF, SYNC START, SYNC STOP, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL, TRACK ON/OFF
File Format Style File Format (SFF)
Other Features One Touch Setting (OTS) Yes
Expandability Expansion Style 10

Groove Creator

Preset Number of Groove 35
Number of Sections 5 (4 Sections + 1 Musical Climax/Ending)

Songs

Preset Number of Preset Songs 30
Recording Number of Songs 10
Number of Tracks 6 (5 Melody + 1 Style/Groove Creator)
Data Capacity Approx. 19,000 notes (when only melody tracks are recorded)
Recording Function Yes
Compatible Data Format Playback SMF (Formats 0 & 1)
Recording Original File Format (SMF 0 conversion function)
USB Audio Recorder
Recording Time (max.) 80 minutes (approx. 0.9 GB) per Song
Format Playback WAV (44.1 kHz, 16 bit, stereo)
Recording WAV (44.1 kHz, 16 bit, stereo)

Quick Sampling

Sampleing Type Normal, Oneshot, Loop
Samples (Preset/Usesr) 5
Sampling Time Approx. 9.6 sec
Sampling Sources AUX IN
Sampling Format Original File Format (16 bit, stereo)
Sampling Rate 44.1 kHz

Functions

USB audio interface 44.1 kHz, 16 bit, stereo
Registration Number of Buttons 4 (x 8 banks)
Lesson/Guide Yamaha Education Suite (Y.E.S.) Lesson 1 – 3 (Listening, Timing, Waiting), Repeat & Learn, Chord Dictionary
Overall Controls Metronome Yes
Tempo Range 11 – 280
Transpose -12 to 0, 0 to +12
Tuning 427.0 – 440.0 – 453.0 Hz (approx. 0.2 Hz increments)
Scale Setting Yes
Miscellaneous PIANO Button Yes (Portable Grand Button)

Storage and Connectivity

Storage Internal Memory Approx. 1.73 MB
External Drives USB flash drive
Connectivity DC IN DC IN 12 V
AUX IN Yes (Stereo-mini)
Headphones x 1 (PHONES/ OUTPUT)
Sustain Pedal Yes
USB TO DEVICE Yes
USB TO HOST Yes (MIDI/Audio: 44.1 kHz, 16 bit, stereo)

Amplifiers and Speakers

Amplifiers 6 W + 6 W (When using PA-150 AC adaptor)
Speakers 12 cm x 2

Power Supply

Power Supply AC Adaptors (PA-150 or an equivalent recommended by Yamaha) or batteries (Six AA size alkaline (LR6), manganese (R6) or Ni-MH rechargeable (HR6) batteries)
Power Consumption 8 W (When using PA-150 AC adaptor)
Auto Power Off Function Yes

Accessories

Included Accessories Music Rest Yes
Song Book Download from website
