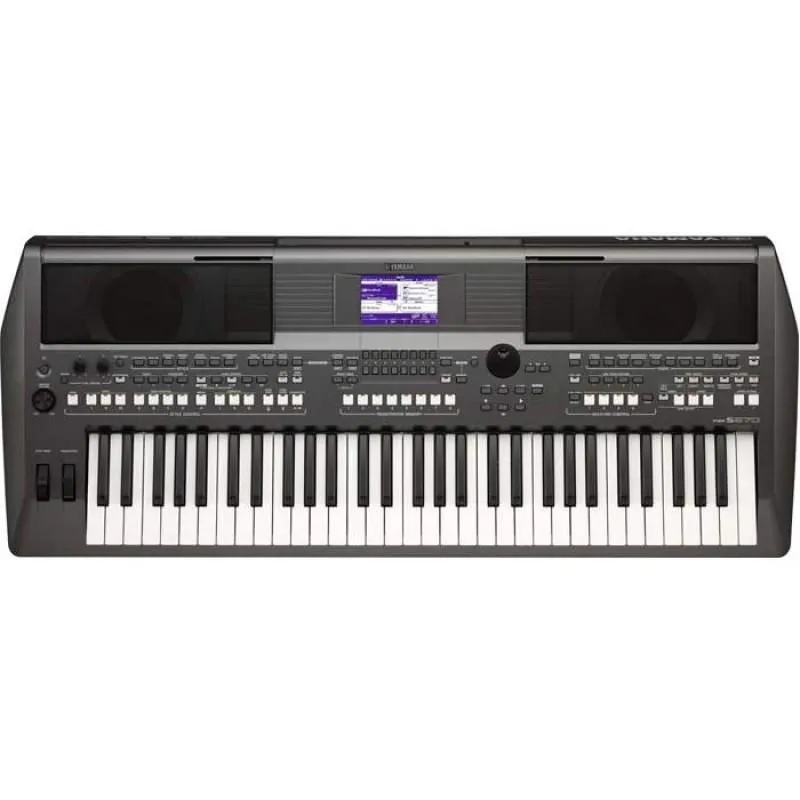

Keyboard PSR-S670 Yamaha

Color/Finish

Body Color Metallic Dark Gray

Size/Weight

Dimensions Width 39.53
Height 5.28
Depth 16.14
Weight Weight 17.86 lbs

Control Interface

Keyboard Number of Keys 61
Type Organ, Initial Touch
Touch Response Hard1, Hard2, Medium, Soft1, Soft2
Other Controllers Pitch Bend Yes
Modulation Yes
Control Knobs 2 (assignable)
Display Type QVGA 4.3 inch LCD
Size 320 x 240 dots
Color Monochrome

Language

English, German, French, Spanish, Italian, Japanese
Panel Language English

Voices

Tone Generation Tone Generating Technology AWM Stereo Sampling
Polyphony Number of Polyphony (Max.) 128
Preset Number of Voices 416 Voice + 34 Drum/SFX Kits + 480 XG Voices
Featured Voices 11 Mega Voices, 19 Sweet! Voices, 28 Cool! Voices, 19 Live! Voices

Compatibility

XG Yes
GS Yes (for Song playback)
GM Yes
GM2 Yes
Expandability Expansion Voice Yes (approx. 32 MB max.)
Part Right 1, Right 2, Left

Effects

Types Reverb 44 Presets + 3 User
Chorus 71 Presets + 3 User
DSP 283 Presets + 10 User
Master Compressor 5 Presets + 2 User
Master EQ 5 Presets + 2 User
Arpeggio Yes

Accompaniment Styles

Preset Number of Preset Styles 230
Featured Styles 208 Pro Styles, 12 Session Styles, 10 DJ Styles
Fingering Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard
Style Control INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3
Other Features Music Finder 1,200 Records
One Touch Setting (OTS) 4 for each Style
Expandability Expansion Style Yes
Compatibility Style File Format, Style File Format GE

Songs

Preset Number of Preset Songs 4 Sample Songs
Recording Number of Songs Unlimited (depends on the drive capacity)
Number of Tracks 16
Data Capacity approx. 300 KB/Song
Recording Function Quick Recording, Multi Track Recording
Compatible Data Format Playback SMF (Format 0 & 1), XF
Recording SMF (Format 0)

Functions

Registration Number of Buttons 8
Control Registration Sequence, Freeze
Lesson/Guide Lesson/Guide Guide mode, Any Key, Karao-Key, Your Tempo
Demo/Help Demonstration Yes
Overall Controls Metronome Yes
Tempo Range 5 - 500, Tap Tempo
Transpose -12 – 0 – +12
Tuning 414.8 – 440 – 466.8 Hz
Octave Button Yes
Scale Type 9 Presets
Miscellaneous Direct Access Yes
Voices Harmony/Echo Yes
Panel Sustain Yes
Mono/Poly Yes

Styles

Style Creator Yes (No Step Edit)
Style Recommender Yes
OTS Information Yes
Songs Song Creator Yes
Score Display Function Yes
Lyrics Display Function Yes
Multi Pads Multi Pad Creator Yes
Audio Recorder/Player Recording Time (max.) 80 minutes/Song
Recording .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo)
Playback .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo)

Storage and Connectivity

Storage Internal Memory approx. 2 MB
External Drives USB Flash Memory (via USB to DEVICE)

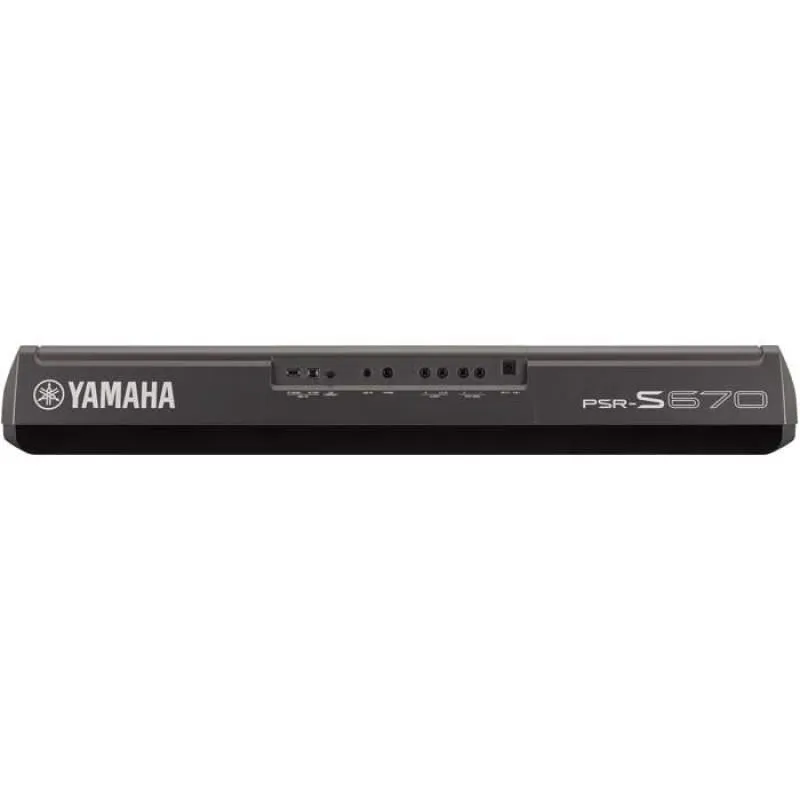

Connectivity

Headphones Yes
FOOT PEDAL 1 (SUSTAIN), 2 (VOLUME), Function Assignable
AUX IN Yes
LINE OUT L/L+R, R
USB TO DEVICE Yes
USB TO HOST Yes

Amplifiers and Speakers

Amplifiers 15 W x 2
Speakers 12 cm x 2

Power Supply

Power Supply PA-300C or an equivalent recommended by Yamaha
Power Consumption 15 W
Auto Power Off Function Yes

Accessories

Included Accessories Owners Manual, Online Member Product Registration, Music Rest, AC Adaptor(may not be include depending on your area. Check with your Yamaha dealer.)
Multi Pads
Preset Number of Multi Pad Banks 179 banks x 4 Pads
Audio Audio Link Yes
