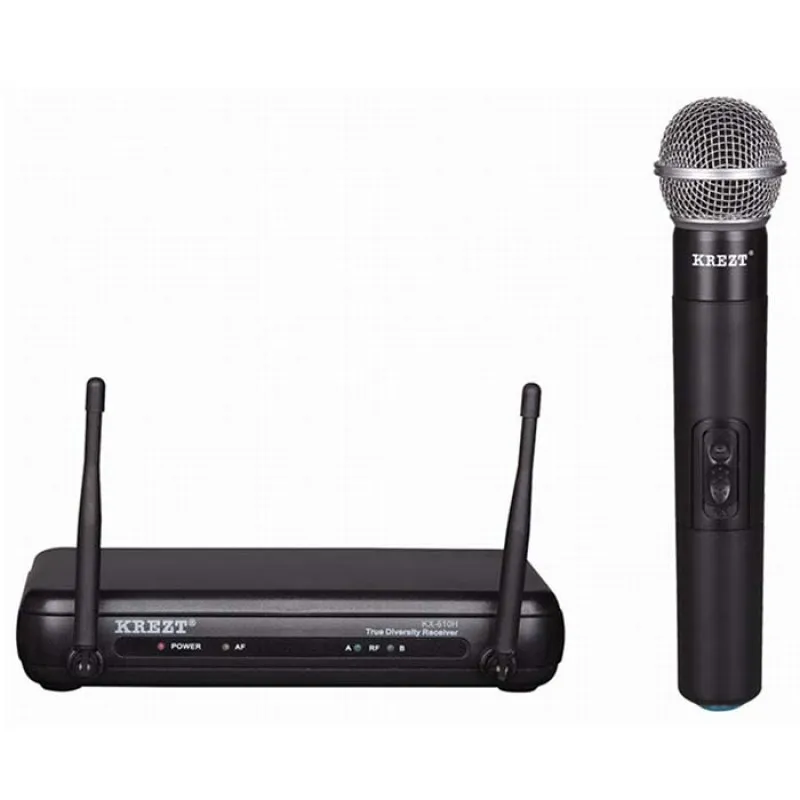

Microphone Wireless KX-610 Krezt
System Specification :
Frequency range : 800-850MHz
Audio frequency response : 60Hz-13KHz ±3dB
Dynamic range : ≥95dB
S/N ratio : ≥90dB
Operating range : >60m
Transmitter Specification :
Sensitivity : -75±3dB
Nominal impedance : 600 ohm
Frequency stability : ±0.01%
RF carrier power : 10mW
Modulation system : crystal
Modulation mode : FM
Antenna : 1/4 herical antenna
Selectable channel : 1 frequencies
Maximum deviation : ±40KHz
Battery : 3V (1.5V AA x 2pcs)
Current : 90mA
Battery durability : 4 hours
LED indicators : 2.5V
Receiver specification :
Frequency range : 800-850MHz
Frequency stability : ±0.01%
Modulation system : crystal
Squelch sensitivity : 11dBµ (-96dBm)
Spurious rejection : >90dB
T.H.D : <0.01%
XLR connector audio output level : 800mV
AF output level : 0-800mV
Current consumption : <200mA
