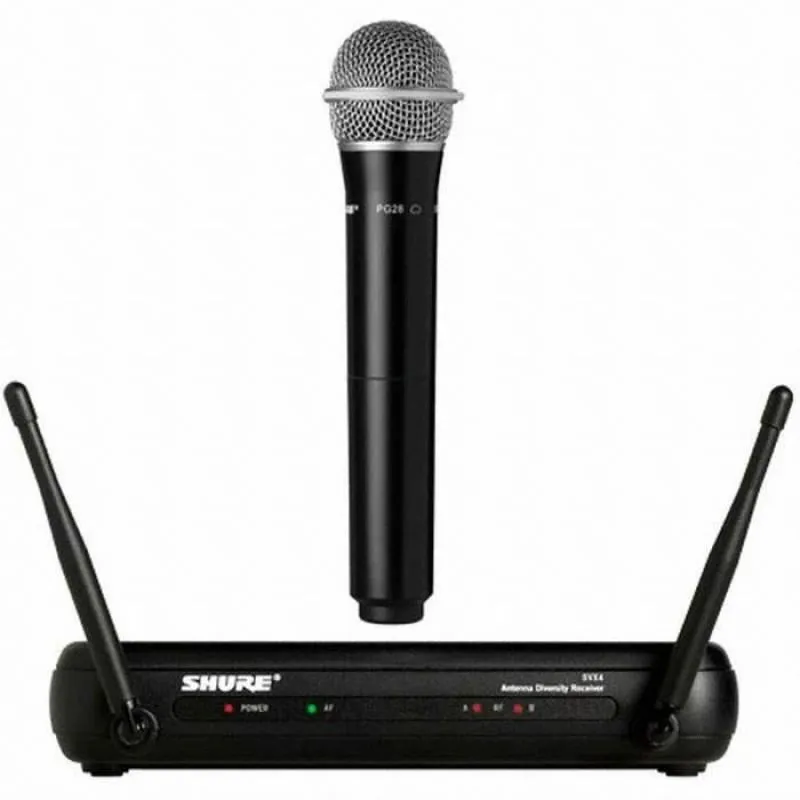

Shure SVX24/PG28 Wireless Vocal System
Components
SVX4 Diversity Receiver
Single channel receiver for use with Shure SVX Wireless systems.
Features
Up to 8 selectable channels
Up to 4 compatible systems*
Antenna Switching Diversity
Adjustable Squelch Level
Mic / Line Switch
2 Audio Output:
1/4" Connector
XLR Connector
Available with Handheld and Lavalier system packages
The SVX Wireless Handheld Transmitter comes with a PG28 or PG58 microphone option.
Features
RF Level Switch between 1mW and 10mW
2 “AA” batteries
Up to 10 hours of battery life
Bottom on/off switch design
Anti-rolling ring on grille for PG28
Power and battery status LED
6 color rings for microphone identification
Tech Specs
Transmitter Type: Handheld
Dimensions: 254 mm X 51 mm diameter
RF Output Power: 1
Battery, endurance: 10 h
Weight: 270 g
Further Technical Specs
Audio Input Level: –20 dBV maximum
Input Impedance: 22 kΩ
RF Output (dependent on applicable country regulations):
HI power mode: 10 mW maximum
LO power mode: 1 mW maximum
Weight: 270 g (10.2 oz.)(without batteries)
Housing: Molded ABS
Power Requirements: 2 “AA” size alkaline or rechargeable batteries
