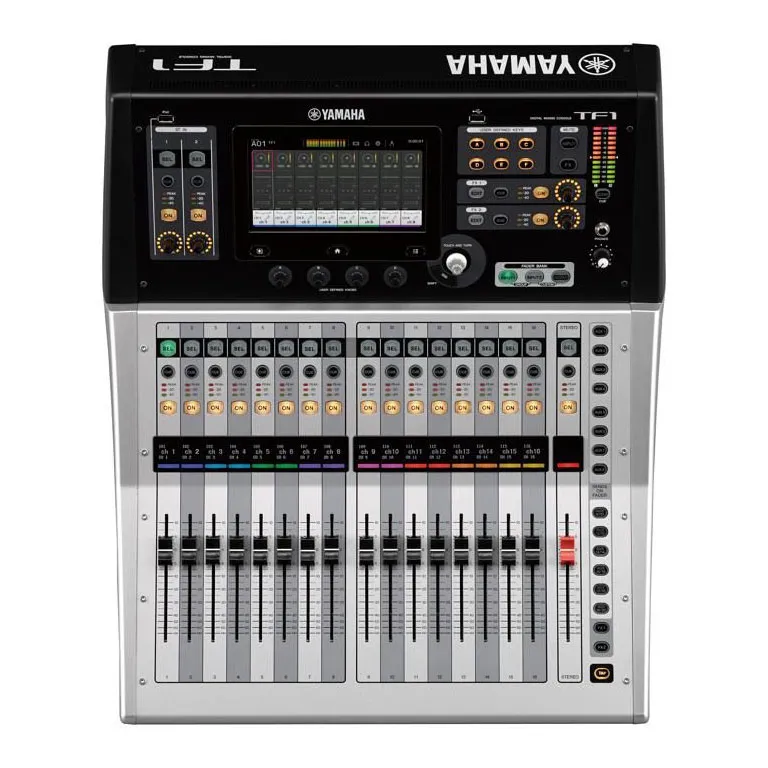

Yamaha TF1 Digital Mixer

TouchFlow Operation - smooth, natural control flow
1-knob compression and EQ let you dial in the ideal sound
Presets and scenes - shortcuts to great sound
D-Pre mic preamps and onboard effects deliver phenomenal sound

TouchFlow Operation - smooth, natural control flow

Smooth and refined, the Yamaha TF1 16-input digital console's TouchFlow Operation provides you with straightforward control that never stands between you and your music. The user interface on the TF1's touchscreen gives you easy, direct accessibility, with a layout that promotes natural, efficient mixing. On top of that, you get a physical Touch & Turn knob right beside the touchscreen, as well as four User Defined knobs, making extra-precision adjustments a breeze.

1-knob compression and EQ let you dial in the ideal sound

Gain, compressor, and EQ setup is child's play with the Yamaha TF1 16-input digital console. Whether you're an experienced FOH engineer or volunteering to run sound for a worship service, the TF1's simplified 1-knob operation lets you adjust compressor and EQ settings with confidence. With a simple twist of a knob, you can use a compressor to bring a guitar to life, add punch to bass, tighten up a snare, and make vocals ride clearly on the mix. On top of that, the TF1's finely tuned EQ lets you achieve outstanding results with minimum effort in the shortest possible time. You also get a Vocal Mode for clear, well-defined vocals, and an Intensity mode for simplified control over EQ curves. Finally, the TF1's GainFinder optimizes your gain setup so you can achieve Grade-A sound quality with little effort.

Presets and scenes - shortcuts to great sound

The Yamaha TF1 is probably one of the least intimidating 16-input digital consoles in existence, thanks to its incredibly practical presets and scenes. Working with microphone manufacturers such as Audio-Technica, Sennheiser, and Shure as well as respected engineers, Yamaha has created a range of shortcuts to great sound that are effective in all kinds of situations. If you're a novice engineer, the TF1's presets will allow you to get a great mix without a bunch of tweaking. On the other hand, if you're an experienced engineer, you'll appreciate the significant time savings provided by having useful starting points instantly available to you. On top of that, you get two banks of scene memory (for a total of 200 scenes), that let you set up and instantly recall all of your settings for nearly any scenario you can dream up. You even get some pre-programmed scenes to get you started!

D-Pre mic preamps and onboard effects deliver phenomenal sound

The mic preamps play a significant role in defining the sound of your mix, that's why the Yamaha TF1 16-input digital console is loaded with 16 of their acclaimed D-Pre mic pres. Utilizing a circuit based on a discrete inverted Darlington configuration, D-Pre preamps provide you with a clean, precise sound that captures every nuance and subtlety of your source. The pure sound of these pres ensure that you won't need to spend hours EQ-ing just to get a barely-acceptable sound, like you would with low-quality mic preamps. You also get eight powerful processors, providing you with wide-ranging sonic control. In addition to the EQ and dynamics processors on each channel, you also get 17 programs based on Yamaha's world-famous SPX processors, ranging from reverb and delay, through modulation effects, to 3-band multiband compression.

Features:

TouchFlow Operation maximizes workflow efficiency
1-knob compression and EQ let you dial in the ideal sound
GainFinder supports precision gain setup
QuickPro presets provide instant access to pro sound setups
2 scene memory banks let you set up and instantly recall your settings
16 D-Pre mic preamps deliver phenomenal sound
Onboard effects bassed on SPX processor
TF StageMix iPad application provides wireless control
TF MonitorMix iOS application allows for wireless personal monitoring
34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
1 expansion slot for NY64-D audio interface card
Expandable to 40 mixing channels

Tech Specs

Type: Digital
Channels: 16 - expandable to 40 input mixing channels (32 mono + 2 stereo + 2 returns)
Inputs - Mic Preamps: 16 x XLR-1/4" combo
Phantom Power: 16 x Channels
Inputs - Other: 2 x Stereo (RCA), 1 x 1/4" (Footswitch)
Outputs - Main: 16 x XLR
Aux Sends: 8 x mono, 6 x stereo
Busses/Groups: 20 x Aux, 1 x Stereo, 1 x Sub
Data I/O: Ethernet (remote control of Tio1608-D for additional 16 channels)
USB: 2 x Type A, 1 x Type B
Computer Connectivity: USB (34 x 34)
I/O Expansion Slots: NY64-D audio interface card
Headphones: 1 x 1/4"
Faders: 17 x 100mm Throw
EQ Bands: 4-band
Effects: 8 effects
Rackmountable: Yes
Height: 8.9"
Depth: 23.6"
Width: 20.1"
Weight: 29.8 lbs.
