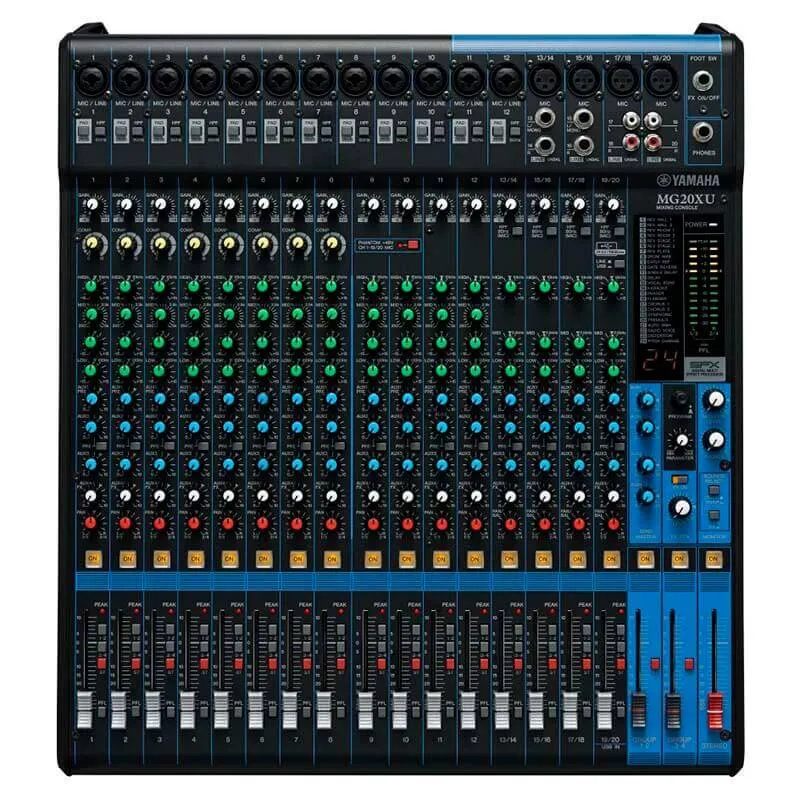

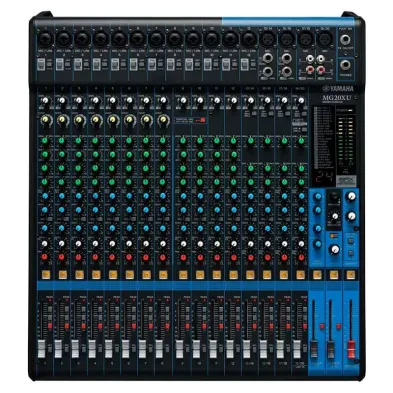

Mixer MG20XU Yamaha

Now in its third incarnation, the MG Series embodies the pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction. The MG20XU is the 20-channel version of the series, with 12 mono XLR and 1/4" hybrid inputs along with four mono/stereo [MIC/LINE] inputs.

The MG16XU boasts an intuitive interface with capacities suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability that has made it a leader in its class.

FEATURES

Outstanding microphone preamps
Switchable Phantom Power & PAD Switch
1-knob Compressors
EQ and High-pass Filters
AUX / Effect Sends / Group
LED level metering
Built-in SPX Digital Effects
Metal Chassis
USB
Studio quiet and barroom loud. Order today.

SPECIFICATIONS

MG20XU 20-Channel Mixer with Effects
On-board processors : SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
Phantom power: +48 V
Digital I/O: USB Audio Class 2.0 compliant, Max 192 kHz, 24-bit
Input Channels: 12 Mono[MIC/LINE], 4 Mono/Stereo[MIC/LINE]
Output Channels: STEREO OUT: 2
MONITOR OUT: 1
PHONES: 1
AUX SEND: 4
GROUP OUT: 4
Bus: Stereo: 1, GROUP, AUX: 4
Input Channel Function
PAD: 26 dB (Mono)
HPF: 80 Hz, 12 dB/oct (Mono)
COMP: 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID: Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter: 2 x 12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
