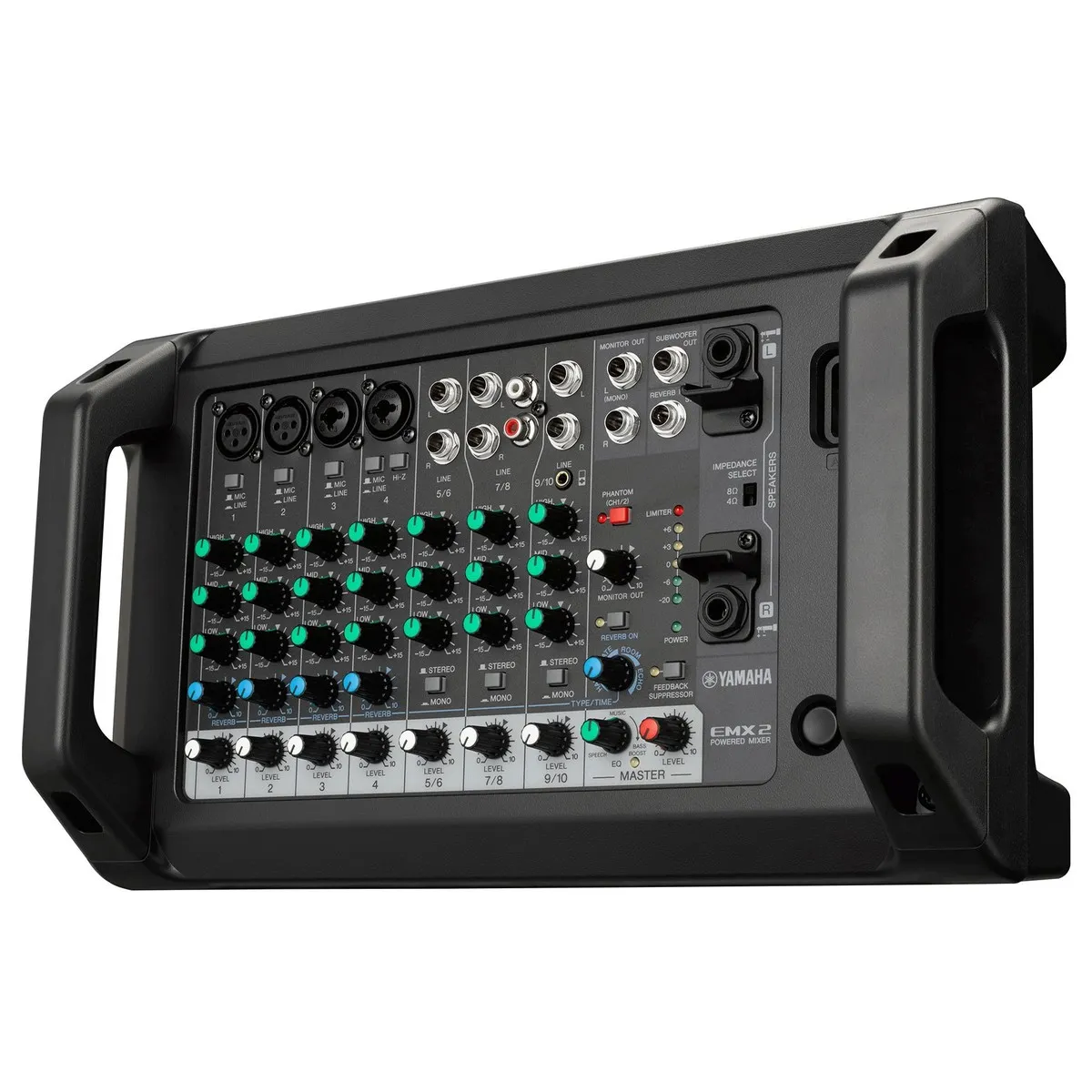

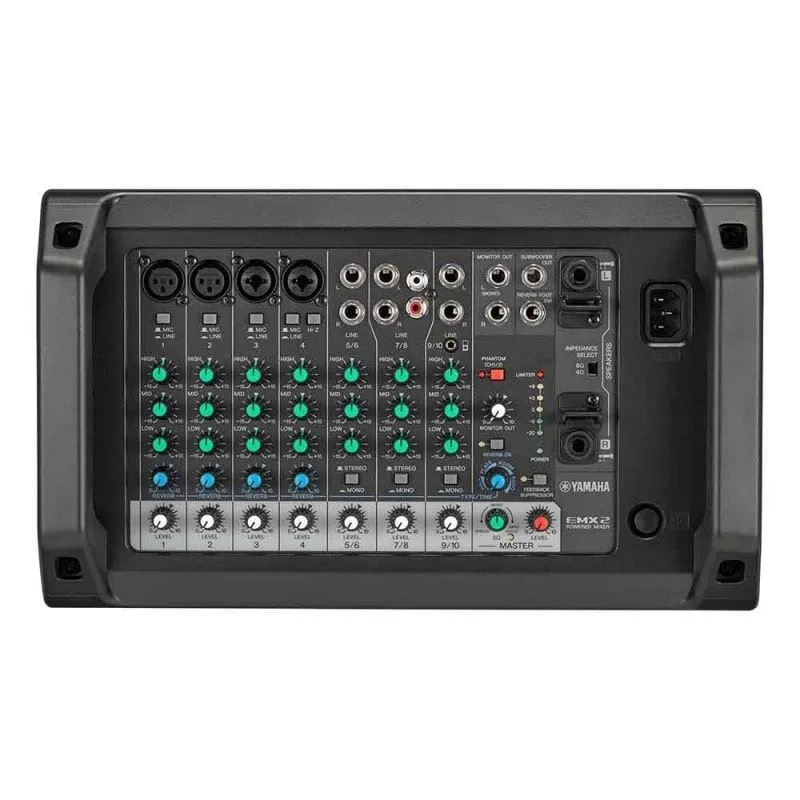

Power Mixer EMX2 Yamaha

Because the EMX2 is both a mixer and a power amplifier, you only need speakers and mics to have a fully functioning sound system. This makes it easy for newcomers, and even first-time users with no previous audio experience to easily configure their own sound reinforcement system. The EMX2's all-in-one design concept ensures that by just plugging in a single power cable and making a few simple, intuitive connections, anyone can be their own sound engineer.

Premium Portability

Despite being a mixer and an amplifier in a single unit, the EMX2's dimensions (14.8 x 5.8 x 8.7") are surprisingly modest, making it easy to fit along with speakers even in the trunk of a small car. The lightweight body also features handles for a superior level of portability that will benefit anyone setting up a PA for applications where time is a consideration.

From Speaking Engagements to Live Bands and DJ Events

The EMX2's flexible connectivity allows you to use up to 4 microphones for singing along with musical instruments, or speaking/ making announcements along with BGM or recorded audio from a portable playback device. The unit also comes equipped with Phantom Power and high-impedance input capability allowing you to use high-performance condenser microphones or connect guitars directly without any external gear. And because the EMX2 is also an amplifier, you can easily connect passive speakers to complete your sound system, or even add a Yamaha DXS Series Powered sub-woofer via a single connection.

4 Yamaha Reverbs for Additional Atmosphere

The EMX2 features some of the most commonly used and practical reverb algorithms, using a single knob to easily select and control the depth for one of four effects; HALL mimics the sound characteristics of a large hall, PLATE for a more classic, defined sound, ROOM adds a more intimate sound to performances, and ECHO gives instruments or vocal a more professional edge, as well as being an attractive option for KARAOKE.

A Positive Feedback Feature

Few things make a live performance or speaking engagement take a negative turn like the sudden, uncomfortable, and often embarrassing howling of unwanted feedback. Luckily the EMX2 comes equipped with a Feedback Suppressor that utilizes a unique Yamaha digital technology to instantly eliminate annoying feedback with the single switch of a button.

Shape Your Sound

For adding the final touch to your mix, the EMX2's 1-Knob Master EQ™ lets you apply optimized EQ settings with the simple turn of a knob. The SPEECH setting is geared towards meetings, seminars, or conferences with a limited lower end for clear, defined speech; MUSIC offers a more balanced sound tailored to acoustic or band performances; and BASS BOOST is ideal for DJ performances or audio playback that puts a priority on emphasizing the base sound.

FEATURES

Format
Analog/digital:Analog
Number of channels:10
Busses/groups:L, R
Aux sends:L, R
Powered:Yes
Inputs
Total inputs:10
Mic preamps:4
XLR/TRS combo jacks:2
XLR only jacks:2
1/4" only jacks:4
S/PDIF in: No
ADAT/optical in:No
RCA in:Stereo pair
AES/EBU: Yes
Outputs
Total outputs: 2
RCA (unpowered)No
1/4” out:0
FireWire0
ADAT/optical out:0
SpeakION2
AES / EBU:0
Other Connectivity
Connections:Audio
MIDI I/O:No
Headphone output(s):No
Wi-FiNo
Word-clock I/O:No
I/O expansion:No
Onboard effects
Compression:No
Reverb:Yes
Delay:No
Chorus/flange:No
Equalization
Type:Shelving
EQ bands:3
Master graphic:No
Other
Width:14.8"
Height:5.8"
Depth:8.7"
Weight:9.3 lb.
Automation:No
Fader type:Rotary
Motorized faders:No
Bundled software:No
