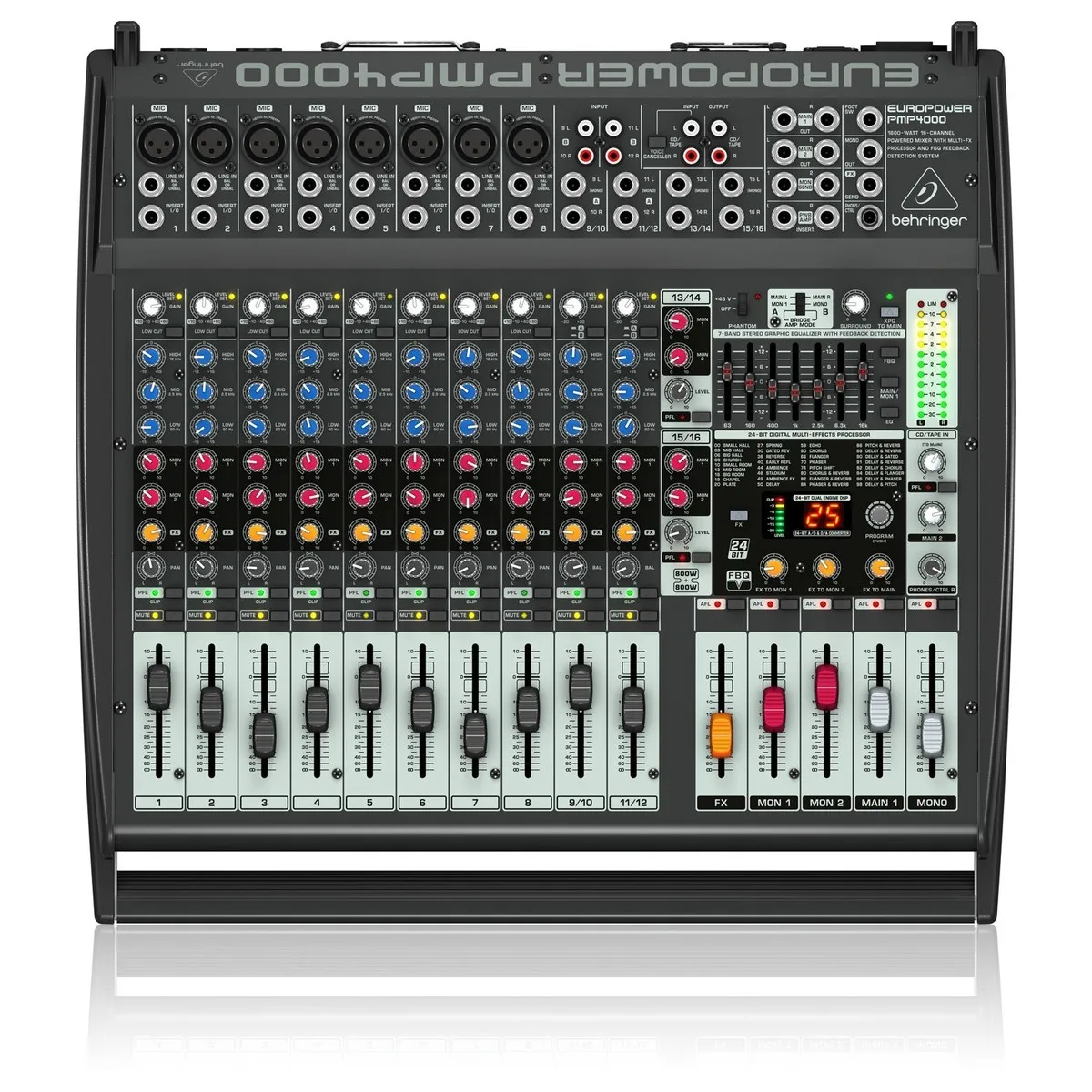

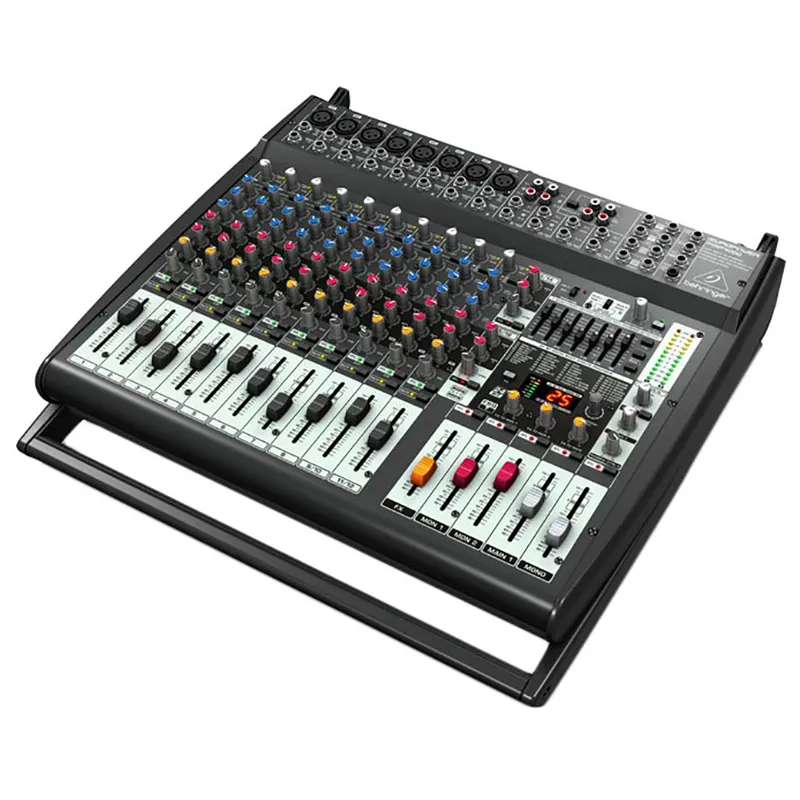

Power Mixer PMP4000 Behringer

The Behringer EUROPOWER PMP4000 Powered Mixer (2 x 800W stereo, 1600W bridged mode) produces even more power than its predecessors while maintaining famously low weight and high efficiency. The EUROPOWER PMP4000 mixer employs Class-D technology including a switch-mode power supply, significantly reducing weight and heat. The 16-Channel Behringer PMP4000 offers 8 built-in XENYX mic preamps, 24-bit FX processor with 100 presets, and FBQ Feedback Detection.

What is Class-D Technology?

Instead of operating relatively continuously like Class AB circuits, Class-D amps switch on and off thousands of times per second, delivering power only when needed. In other words, the amplifier is either fully on or fully off, which significantly reduces power losses from the output devices given off as heat. Less heat means the amps don't need massive heat sinks, and that makes them lighter. This no-compromise design means the EUROPOWER PMP4000 mixer will deliver full power with incredible fidelity all night long, without the need for lengthy rest cycles.

When used in conjunction with switching-mode power supplies, which don't require huge and heavy transformers, Behringer's Class-D amplifiers provide tremendous dynamic punch and superior fidelity. The resulting speaker systems are much lighter, making them easy to transport and set up.

Massive Mono or Stunning Stereo

EUROPOWER PMP4000 gives you the choice of 2 x 800-watt stereo, 2 x 800-watt dual mono mode (giving you a mono version of the main signal through one powered output plus a mono version of all monitor send signals through the second powered input) or 1,600-watt bridged mono sound. Whether the center of attention happens to be a folk trio, a speech, or a synth-rock band with mind-boggling stereo patches, the EUROPOWER PMP4000 mixers can accommodate. This sonic versatility also makes it an excellent choice for churches, where vocals and stereo recordings often share face time.

Classic Control, State-of-the-Art Sound

Leave the mic preamps at home, because the quality of sound that was once only available in the studio is ready to go wherever you do. Built-in, boutique-caliber mic preamps with switchable +48V phantom power make it possible to use either dynamic or condenser mics with the EUROPOWER PMP4000. It gives you 8 mic inputs.

Built-in Digital Effects Processor

The EUROPOWER PMP4000 comes equipped with a 24-bit FX processor, giving you 100 mind-blowing digital effect presets such as delay, chorus, and reverb. Apply them to any channel, as well as to the monitors and main output. In case you're pulling double duty as sound engineer and performer, the FX processor features a footswitch jack for remote on/off. Of course, if you have treasured outboard gear you've grown attached to, the EUROPOWER PMP4000 can integrate them into the mix while leaving out the built-in FX processor.

Changing the Channels

The EUROPOWER PMP4000 mixer has excellent flexibility to accommodate whatever a performance requires. You get 8 channels for mics, guitars, and other mono instruments. Stereo channels 9-16 are designed to work in pairs as stereo channels, or independently for more mono instruments. All mono channels have 3-band EQ, switchable low-cut filter for eliminating infrasonics, and Clip LEDs to indicate when the input signal is too hot.

The FBQ Feedback Detection system automatically shows you which frequencies are causing feedback. Just touch the FBQ button and watch the red LEDs on the 7-band graphic EQ pinpoint show you which frequencies to adjust for optimized sound, without the feedback.

The Ins and Outs

Use the CD/Tape In RCA inputs to feed in external stereo signals from CD players or tape decks. The Voice Canceler switch eliminates the vocals from prerecorded music for instant karaoke applications.

CD/Tape Out RCA outputs send line-level signals from the mixer to a recording device. The left and right output 1/4" connectors can be used for a variety of purposes, including connecting more power amps. Connect monitor power amps or active monitor speakers to the Mon Sound output. Powered outputs on this mixer are available in professional Speakon-compatible format.

Small, Simple, Superb

Medium-sized events call for a lightweight, easy-to-use powered mixer. The EUROPOWER PMP4000 mixer is one of the most efficient, affordable mixers for the job, and is even suitable for use as pure analog mixer or as a pure power amplifiers. With new technological advantages and incredible built-in features, it's easier than ever to lend exceptional sound quality to all kinds of public performances.

FEATURES

Ultra-compact 2 x 800W stereo powered mixer (1600W bridged mode)
Revolutionary Class-D amplifier technology: enormous power, incredible sonic performance, and super-lightweight
Ultra-compact design at nearly half the depth and weight of conventional powered mixers means no more lugging around dead weight
16-channel mixer section features 8 mono and 4 stereo channels plus separate CD/Tape input/output
Studio-grade, 24-bit stereo FX processors with 100 presets including reverb, chorus, flanger, delay, pitch shifter, and various multi-effects
Revolutionary FBQ Feedback Detection system instantly reveals critical frequencies for easy feedback removal
8 high-quality XENYX Mic Preamps with switchable +48V phantom power for condenser microphones
Effective, extremely musical 3-band EQ, switchable Pad, and Clip LEDs on all mono channels
Stereo 7-band graphic EQs allows precise frequency correction of monitor and main outputs
Voice Canceler function removes singer's voice from recordings for karaoke applications
Selectable stereo (main L/R), double mono (main/monitor) or bridged mono amplifier operation mode
Speaker Processing function adjusts frequency response to match professional speaker systems like BEHRINGER EUROLIVE series, etc.
Standby switch mutes all input channels during breaks while background music is provided via CD/Tape input
Adjustable stereo Aux input for connecting external signal sources
Internal switch-mode power supply, noise-free audio, superior transient response and very low power consumption
High-quality components and exceptionally rugged construction ensure long- life
SPECIFICATIONS

EUROPOWER PMP4000 16 Ch Powered Mixer w FX

Microphone Inputs

Type: XLR, electronically balanced input circuit
Mic E.I.N. (20Hz-20kHz): @ 0Ω source resistance: -134dB / 136dB A-weighted, @ 50Ω source resistance: -131.5dB / 134dB A-weighted, @ 150Ω source resistance: -129dB / 155dB A-weighted
Frequency response: < 10Hz-200kHz (-1dB), < 10Hz - > 200kHz (-3dB)
Gain: +10dB, +60dB
Max. input level: +12dBu @ +10dB gain
Impedance approx.: 2.6kΩ balanced / 1.3kΩ unbalanced
Signal-to-noise ratio: 109dB / 112dB A-weighted (0dBu In @ +10dB gain)
Noise (THD + N): 0.002% / 0.00018% A-weighted

Mono Line Inputs

Type: 1/4" TS connectors, balanced
Impedance: approx. 20kΩ
Max. input level: +21dBu

Stereo Line Inputs

Type: 1/4" TRS connectors, unbalanced
Impedance: > 3.6kΩ
Max. input level: +22dBu

Equalizer

Low: 80Hz / ±15dB
Mid: 2.5kHz / ±15dB
High: 12kHz / ±15dB

2-Track Input

Type: RCA
Impedance approx.: 3.6kΩ

Preamp Outputs

MAIN:
Type: 1/4" TS connectors, unbalanced
Impedance: approx. 150Ω, unbalanced
Max. output level: +21dBu

Monitor

Type: 1/4" TS connectors, unbalanced
Impedance: approx. 150Ω, unbalanced
Max. output level: +21dBu

Stereo Outputs

Type: 1/4" TRS connectors, unbalanced
Impedance: approx. 150Ω, unbalanced
Max. input level: +21dBu
Type: RCA
Impedance: approx. 1kΩ
Max. input level: +21dBu

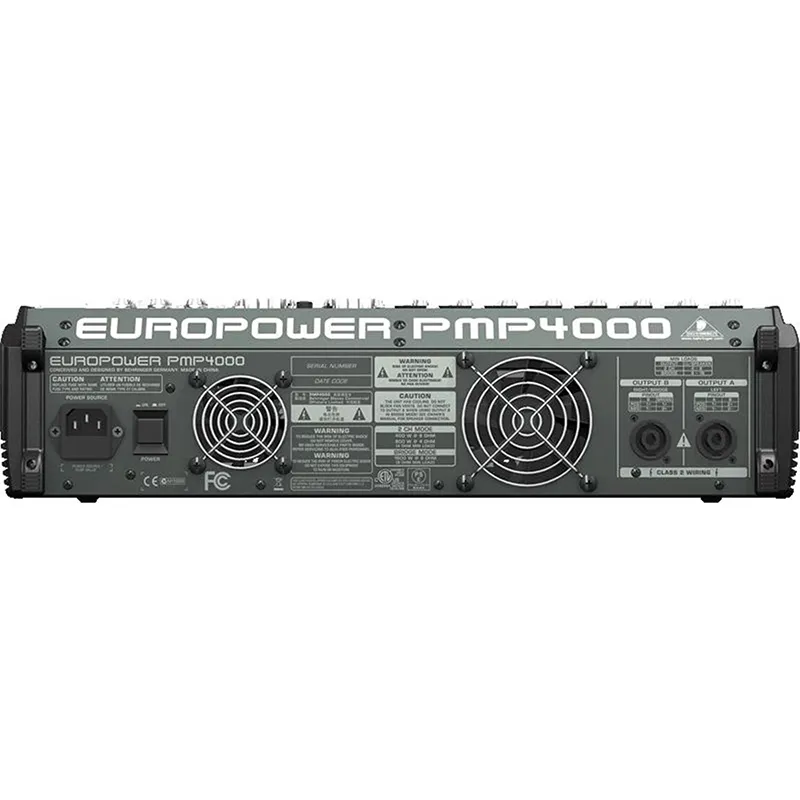

Loudspeaker Outputs

Type: Professional loxking connector
Load impedance:
MAIN L/R: 4 - 8Ω
MONITOR/MAIN MONO: 4 - 8Ω
MAIN MONO/MAIN MONO: 4 - 8Ω
BRIDGE: 8 - 16Ω

DSP

Converter: 24-bit Delta-Sigma, 64/128-times oversampling
Dynamic:s D/A 90dB
Sampling rate: 46.875kHz
Delay Time: max. 5 secs
Signal run time (Line In > Line Out): approx. 1.5ms

Display

Type: 2-digit, 7-segment LED

Output Power

RMS @ 1% THD, both channels driven:
8Ω per channel: 300W
4Ω per channel: 600W
RMS @ 1% THD, bridged mode: 8Ω 1200W
Peak Power, both channels driven:
8Ω per channel: 400W
4Ω per channel: 800W
Peak Power, bridged mode: 8Ω 1600W

Power Supply

Mains voltage
USA/Canada: 120V~, 60Hz
Fuse 100: - 120V~ T 10 A H 250V
Fuse 220: - 240V~ T 6.3 A H 250V

Power Consumption

Power consumption: 1050W
Mains connector: IEC standard receptacle

Dimensions/Weight

Dimensions (WxHxD): 18-3/4" x 4-7/8" x 18-1/8", 476mm x 122mm x 460mm
Weight: 10.4 kg/22.9 lb.
