The DSR112 Active Loudspeaker features an ideal combination of advanced digital sound processing and the latest acoustic technologies for Integral Digital Tuning, plus Yamaha's D-CONTOUR (Dynamic-CONTOUR) multi-band dynamic processing for Intelligent Dynamic Control. The DSR112 is loaded with 2 Class-D amplifiers with a PFC (Power Factor Correction) switching mode power supply. One amplifier deliver 850 watts to a premium grade 12" neodymium woofer with 3" voice coil and a second amplifiers supplies 450 watts to a large 2" high purity titanium diaphragm, neodymium, high frequency compression driver. A LTBD (Long Throw, Broad Dispersion) Constant Directivity Waveguide Horn spreads the sound across 90° x 60°. The DSR112 has an impressive maximum SPL of 134dB peak.

FIR-X tuning

The digital crossover networks use high-order FIR (Finite Impulse Response) filters providing linear phase response. Yamaha's proprietary FIR-X tuning technology simultaneously optimizes frequency and phase response, whilst adjusting the time alignment between the HF and LF transducers. The end result is substantially higher sound quality than can be achieved with conventional analog crossovers.

High Power DSP and 24-bit Discrete ADCs and DACs

All signals are precisely processed by a 48-bit internal processing, (76-bit accumulator), high-performance processor for optimum sound quality. The DSR Series speakers employ high-precision discrete ADCs and DACs with superior S/N ratio and dynamic range. The analog signal is transmitted on dual channels, converted to digital and summed inside the processor. By using this algorithm, an approximately 3dB improvement in S/N ratio was realized. FIR-X tuning provides for the smoothest possible crossover transitions.

D-CONTOUR (Dynamic-CONTOUR)

The D-CONTOUR multiband dynamic processor constantly monitors the amplifier output levels and adjusts the control system. This in turn varies the amount of boost in each frequency band, providing an ideal balance of dynamic sound with consistent clarity at all volume levels. D-CONTOUR can be turned on or off depending on the acoustic environment and type of sound desired.

1300W (LF 850W, HF450W) High Power, High Sound Quality Class-D Amplifiers

Yamaha's next-generation Class-D amplifiers deliver as much as 1300W of power with precision damping for tight and crisp sound from compact, lightweight modules. Through the ideal combination of amplifiers, transducers and DSP, the DSR Series loudspeakers provide the highest levels of power in their class, while maintaining precise dynamics and sound reproduction. Efficiency is such that convection cooling is all that is necessary, eliminating the need for fans.

Full Resonance Switching Mode Power Supply with PFC (Power Factor Correction)

The DSR Series employs a Yamaha-developed high efficiency switching mode power supply with PFC. The full resonance switching method uses both voltage resonance and current resonance, creating a clean power supply waveform with minimal high frequency noise. PFC harmonizes the phases of the load current and power supply voltage, maximizing power output and ensuring stable operation under severe conditions. This clean, efficient power supply enables the entire speaker system to achieve its full performance potential.

3-Way Fail-Safe Protection

To ensure the highest possible reliability, the DSR Series employs many of the same protection functions used in Yamaha's top-class TXn Series professional power amplifiers. These functions protect all aspects of the power supply, power amplifier modules and transducers so that they can operate to their full potential while ensuring fail-safe operation even under the most severe conditions.

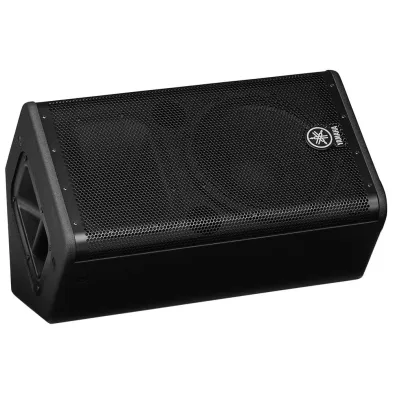

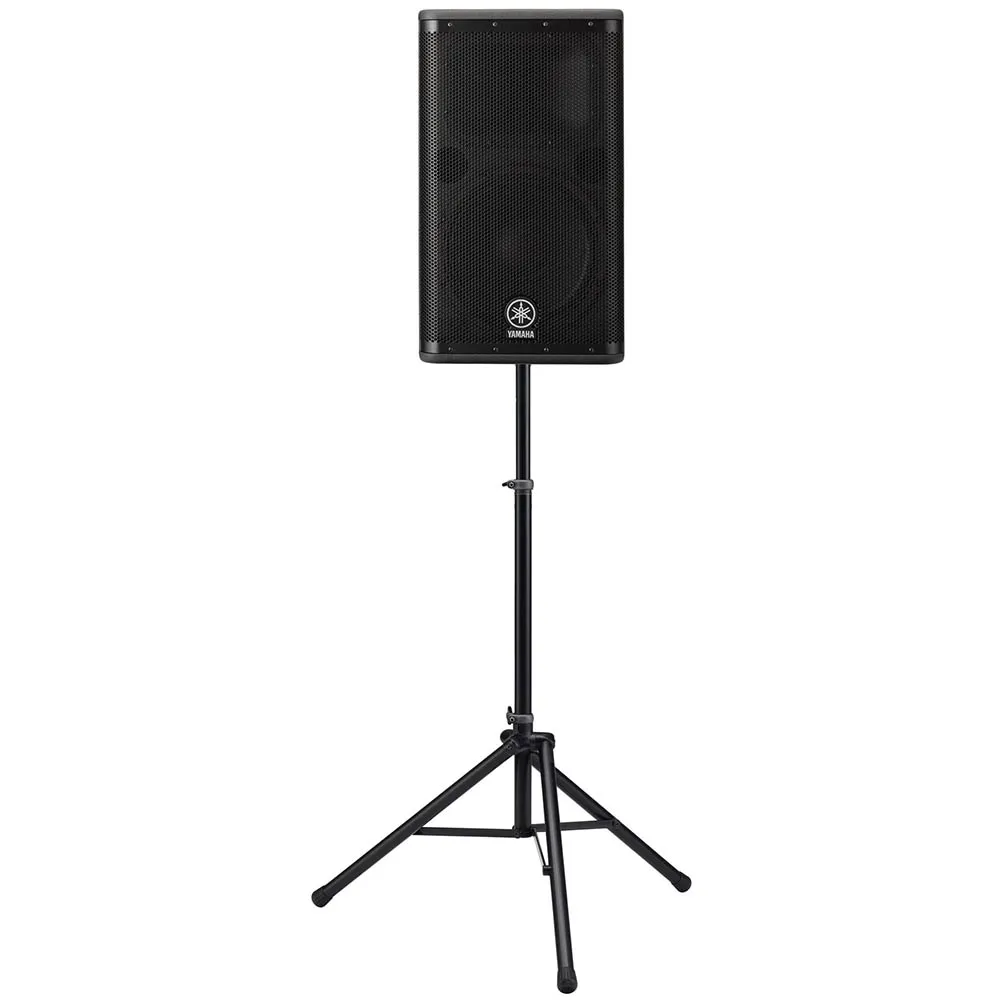

The DSR112 performs as main PA and floor monitor and is stand and pole mountable, with a 35mm pole socket. M10 rigging points allow for suspended installation.

Features

12" 2-way Active Loudspeaker
Advanced digital sound processing with 48-bit internal processing
D-CONTOUR (Dynamic-CONTOUR) multi-band dynamic processing
All-new 1300W Class-D amplifiers with PFC switching mode power supply
Maximum SPL 134dB peak
Extensive protection of the transducers, amplifiers and power supply from high performance DSP
Performs as main PA or floor monitor
Integrated M10 rigging points
DSR112 Active Loudspeaker Specifications:
Active Loudspeakers
Model: DSR112
System Type: 12" 2-way, Bi-amp Powered Speaker, Bass-reflex Type
Frequency Range (-10dB): 55Hz ˜ 20kHz
Frequency Response (-3dB): 60Hz ˜ 18kHz
Coverage Angle: H90°×V60°
CrossoLver Type: FIR-X tuning (linear phase FIR filter)
Crossover Frequency: 1.7kHz
Measured Maximum SPL (peak) IEC noise @ 1m: 134dB SP
Amplifier
Amplifier Type: Class-D
Power Rating: 1300W
Low-Frequency: 850W
High-Frequency: 450W
Cooling: Natural Convection

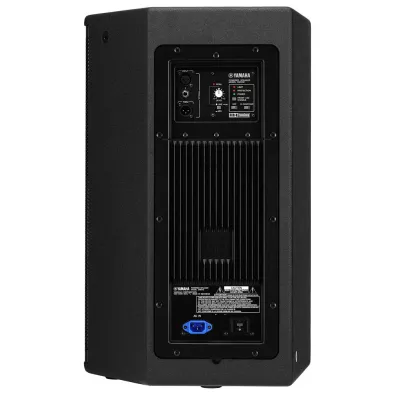

Controls

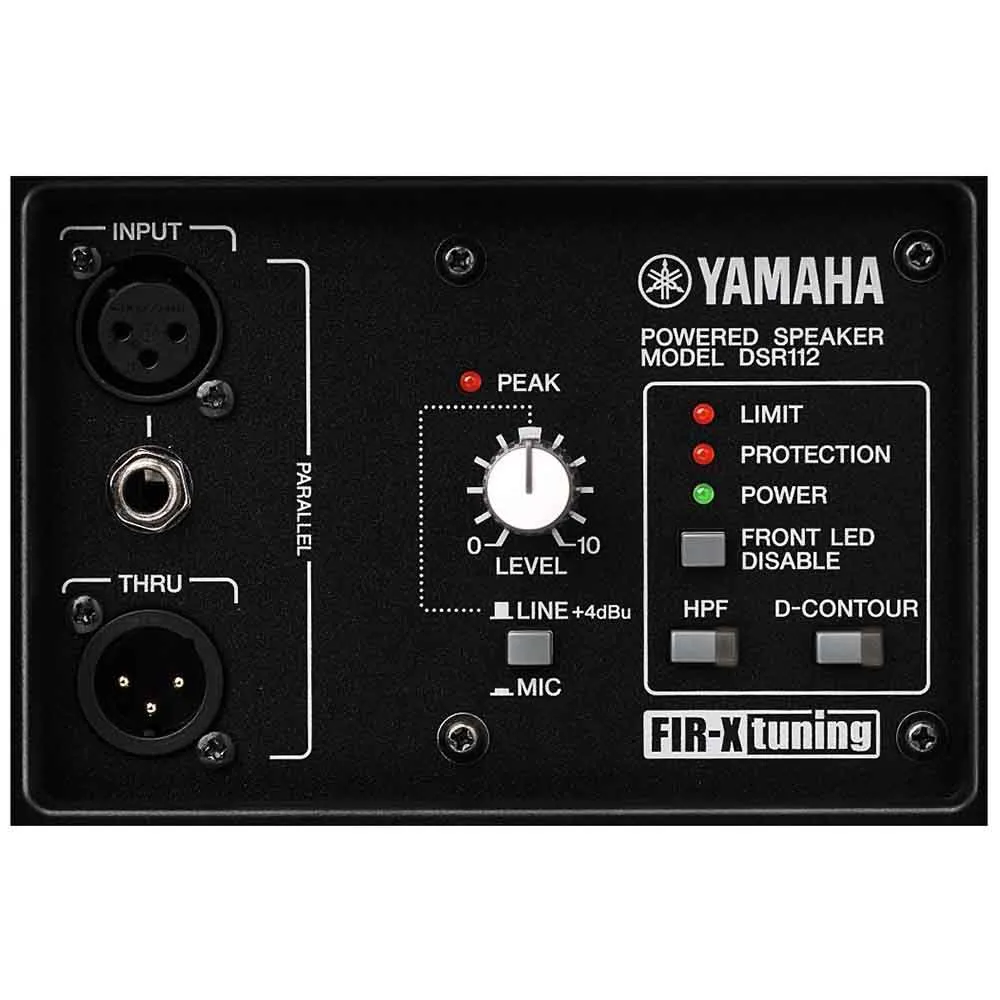

LEVEL control
LINE/MIC switch
HPF switch
D-CONTOUR switch
FRONT LED DISABLE switch, POWER switch
Indicators
PEAK: x1 (Red)
LIMIT:x1 (Red)
PROTECTION:x1 (Red)
POWER:x1 (Green)
FRONT:x1 (White)
HPF:x1 (Orange)
D-CONTOUR :x1 (Orange)
HPF Frequency: 120Hz (-6dB) 24dB/oct
Boost Type: D-CONTOUR (Dynamic CONTOUR)
Protection
Load
POWER switch on/off: Mute
DC-fault: power supply shuts down automatically (reset manually)
Integral Power Protection: Limit the output (return automatically)
Clip limiting
Amplifier
Thermal: Limit the output or Mute (return automatically)
Output through current: Amplifier shuts down automatically (reset manually)
Power supply
Thermal: Amplifier shuts down automatically (reset manually)
Over voltage: power supply shuts down automatically (reset manually)
Connectors
Input: XLR-3-31 x1 (Balanced), TRS Phone Jack x1 (Balanced)
Output: XLR-3-32 x1 (Balanced), Parallel connection with INPUT
Power: AC inlet x1
Power Consumption (1/8Power):100W

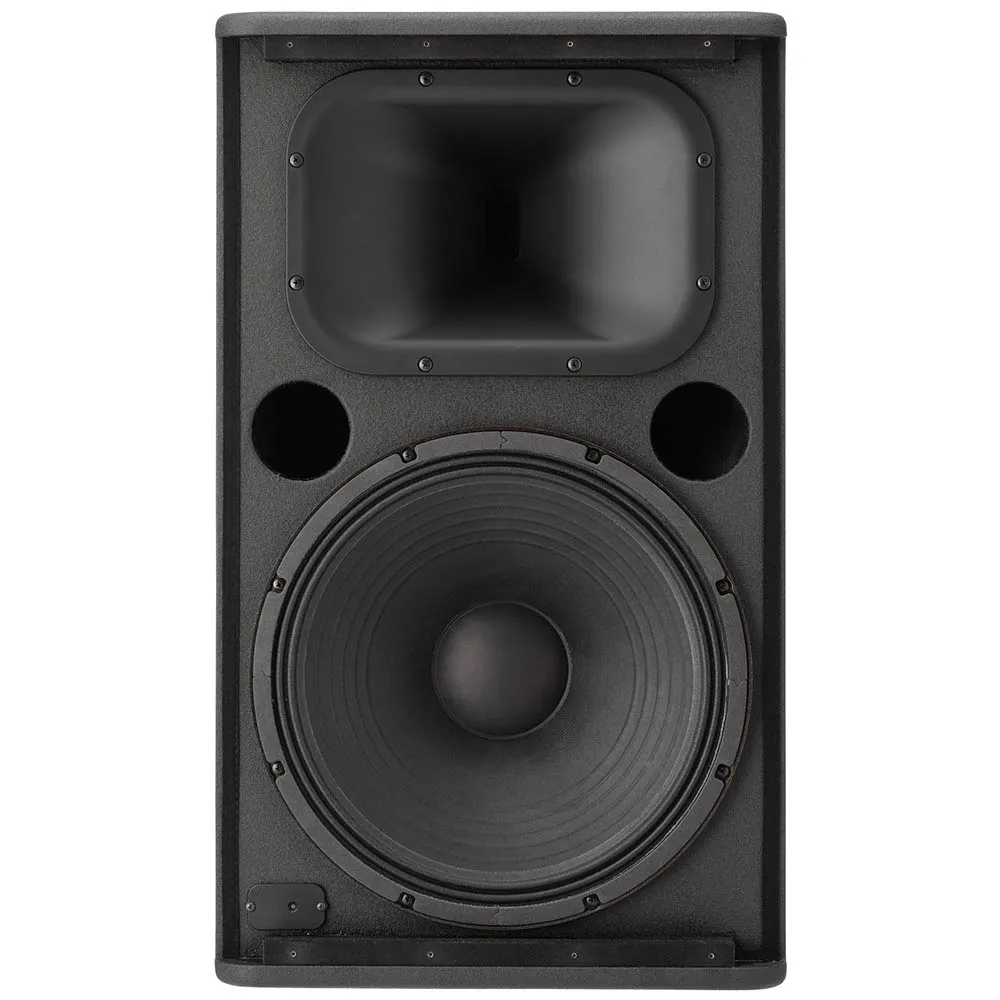

Transducers
Low-Frequency: 12" cone
Magnet: Neodymium Magnet
Voice Coil: 3" diameter
High-Frequency: 2" Titanium diaphragm compression driver
Magnet: Neodymium Magnet
Enclosure
Dimension (W x H x D): 14-5/8" x 25-2/8" x 14-4/8", (370×638×368mm)
Weight: 47 lb., (21.2kg)
Externals Finish, Color: LINE-X, Black
Grille: 16-gauge matte black powdercoated perforated steel grille
Metal Handle: 1 piece (Top Board)
Pole Socket: 35mm Diameter (Bottom Board)
Flying Hardware: 3 x M10 (TOP L/R 1 piece each, Bottom rear 1 piece)
Input characteristics
MIC/LINE switch: LINE
Input Sensitivity: LEVEL position: maximum: 0dBu, LEVEL position: center (12 O'clock): +7dBu
Maximum Input Level: +24dBu
Input Impedance: 12kΩ
MIC/LINE switch: MIC
Input Sensitivity (LEVEL position): maximum: -25dBu
Maximum Input Level: -11dBu
Input Impedance: 8kΩ
