Speaker Active DSR115 Yamaha

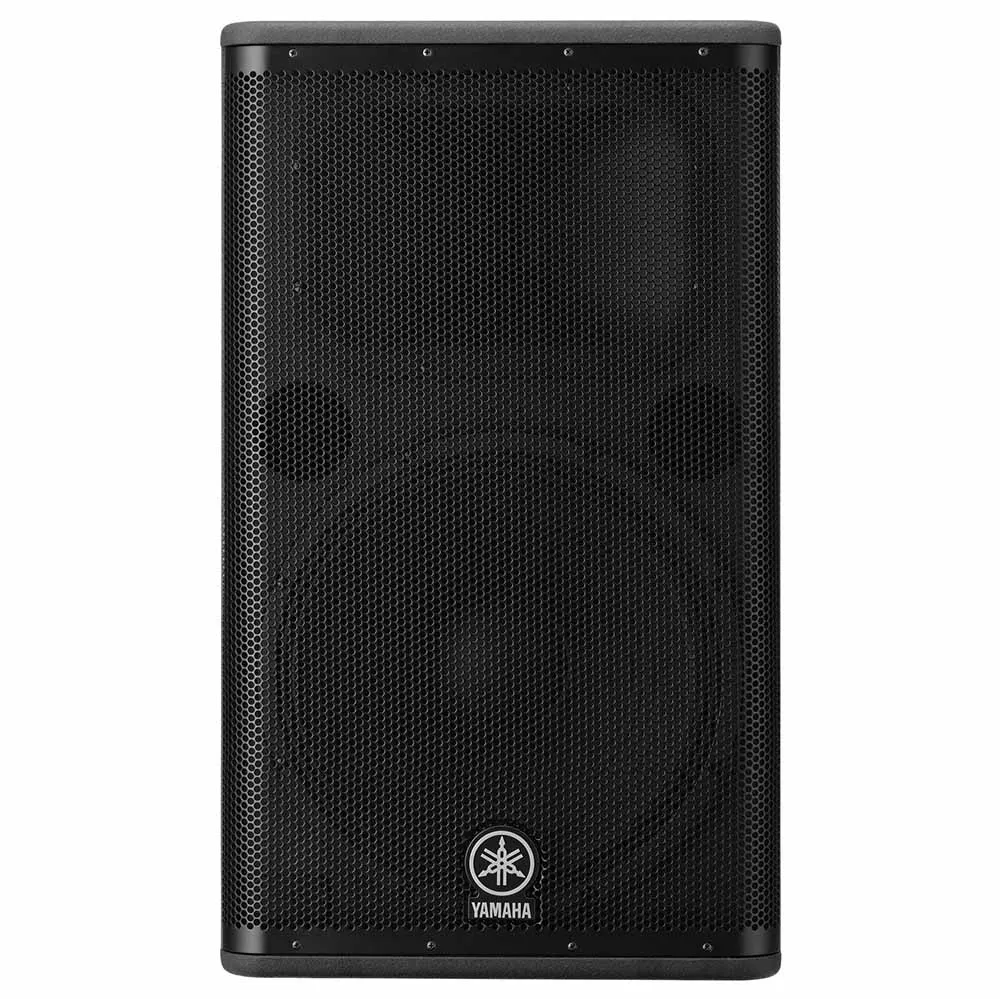

The DSR115 is a compact, high-power 15" 2-way active loudspeaker system capable of achieving 136dB maximum peak SPL output. Equipped with high performance 48-bit DSP and top quality 1300W (LF 850W, HF 450W) Class-D amplifiers, it delivers sound with resolution at the highest level in its class and superb SPL performance. The DSR115 is perfect for live sound and installation applications that demand bass with extra punch and depth together with accurate high frequency response.

Features:

Ultra-precise 48-bit digital sound processing
- Digital FIR-X tuning™ (linear phase FIR filter)
- High performance 48-bit DSP (76-bit accumulator)
- 24-bit discrete AD and DA converters

D-CONTOUR (Dynamic-CONTOUR) multi-band dynamic processing

All-new 1300W Class-D amplifiers with PFC* switching mode power supply

- LF: 850W
- HF: 450W
*Power Factor Correction
Maximum SPL 136dB peak

Extensive protection of the transducers, amplifiers and power supply from highperformance DSP

Premium-grade, custom designed transducers

- LF:High power 12" neodymium woofer with 3" voice coil
- HF:2" precision titanium diaphragm, neodymium, compression driver
Exclusive 90° × 60° CD Waveguide Horn

Compact and lightweight (28.0kg / 62lbs)

Stand and pole mountable, with 35mm pole sockets

Integrated M10 rigging points for suspended applications.

General specifications:

- Speaker type: 15" 2-way, Bi-amp powered Speaker, Bass-reflex Type
- Frequency response: -10dB 45Hz ~ 20kHz, -3dB 55Hz ~ 18kHz
- Nominal coverage: H 90° V 60°

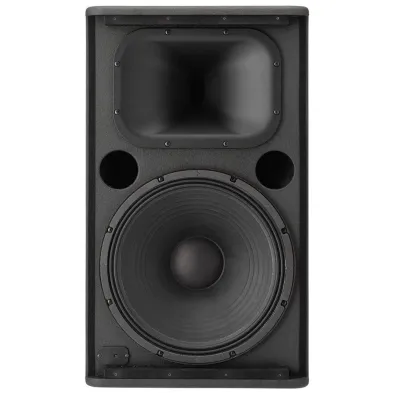

- Components: LF 15" cone, HF 2" Titanium diaphragm compression driver
- Crossover: FIR-X tuning (linear phase FIR filter)
- Output power: 1300W (LF: 850W HF: 450W)
- Maximum output level (1m; on axis): 136dB SPL

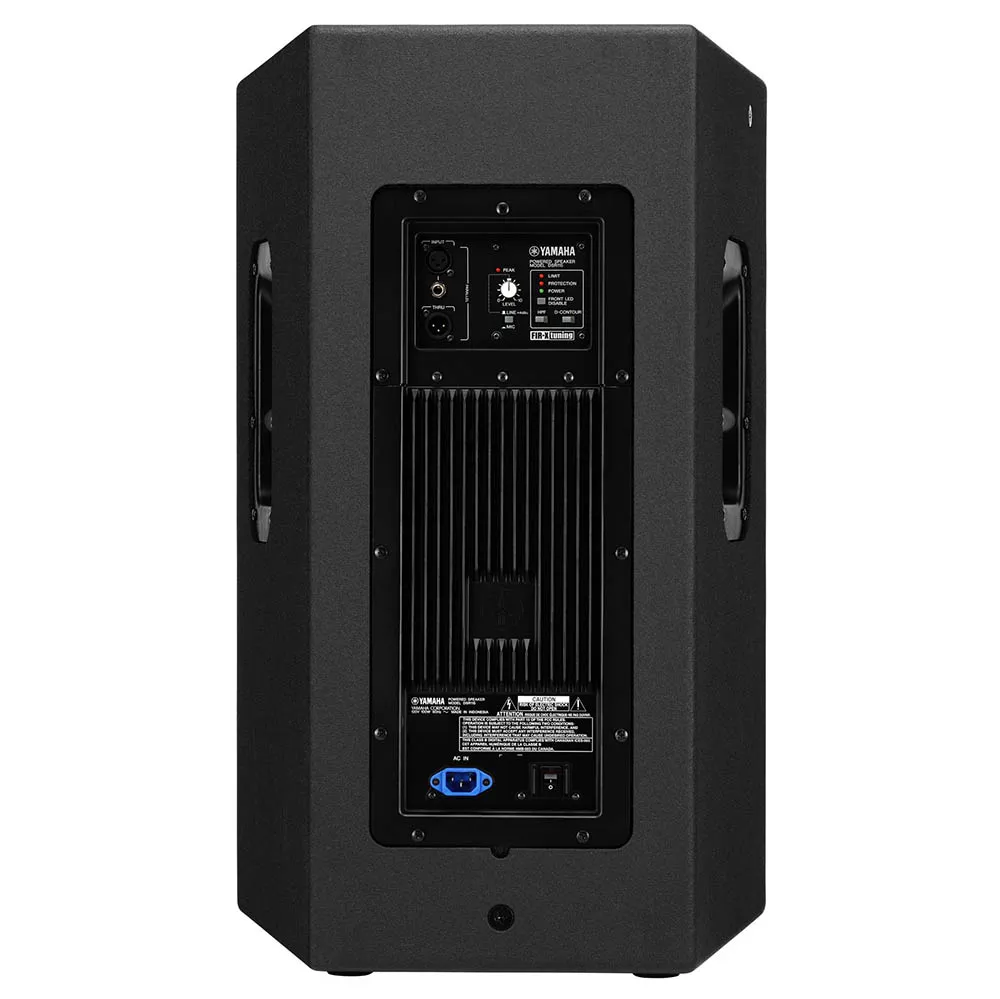

- I/O connetcors INPUT: XLR-3-31 x1 (Balanced) TRS Phone Jack x1 (Balanced), OUTPUT:XLR-3-32 x1 (Balanced), Parallel connection with INPUT
- Processors: D-CONTOUR (Dynamic CONTOUR)
- Power consumption: 100W
- Flying and mounting hardware: 3 x M10 (TOP L/R 1pc each, Bottom rear 1pc)
- Pole socket: 35mm (Bottom Board)
- Dimensions: W 442mm (17 4/8"), H 755mm (29 6/8"), D 423mm (16 4/8")
- Net weight: 28.0kg (62lbs).
