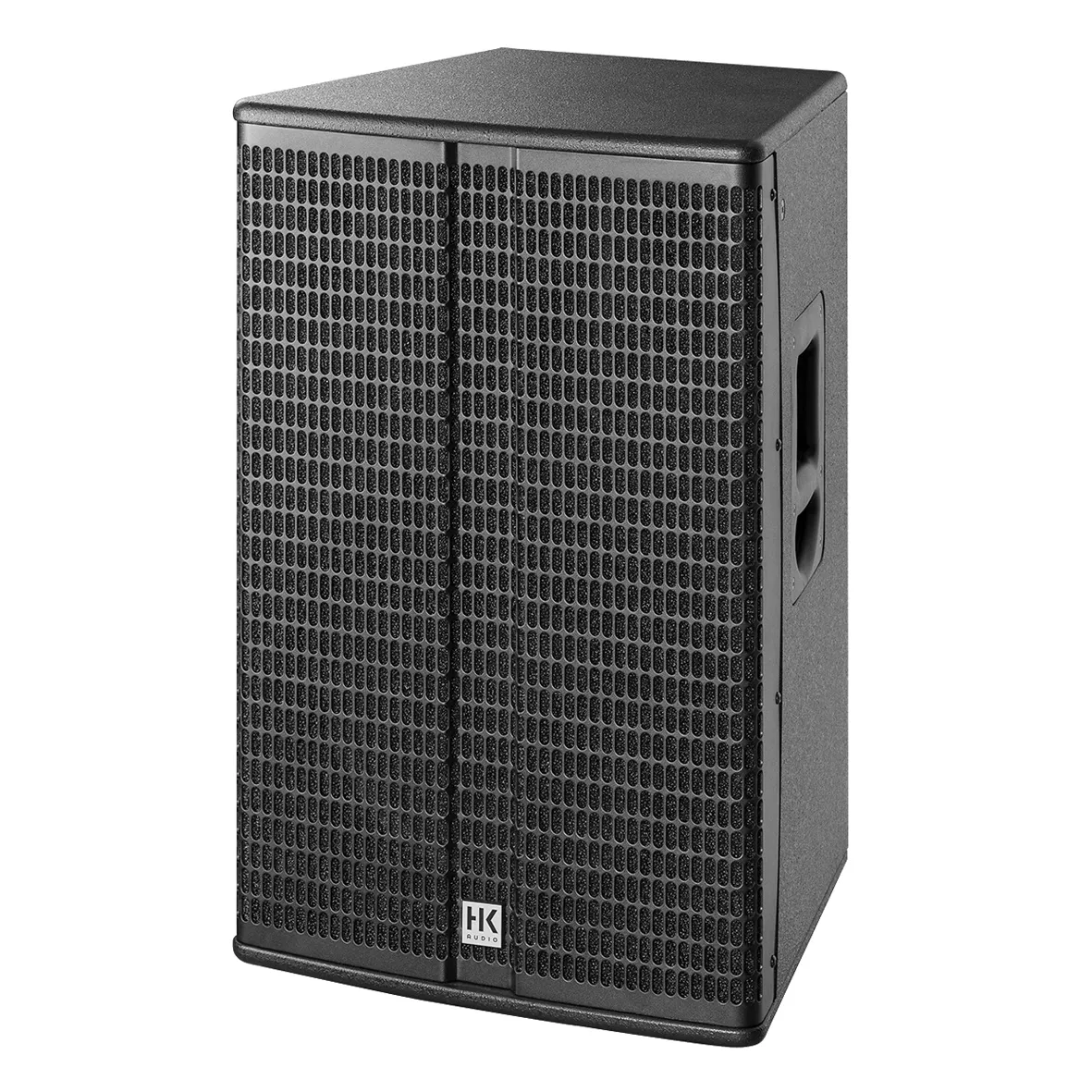

L3 115 FA – TOP PERFORMANCE TO TRUST

Powered, 1200W , 15”/ 1”, 137 dB max. SPL, plenty of sound-shaping options with four EQ presets — Bass Boost, Flat (LF), Flat (MHF) and Contour

Description :

This active 15”/1” fullrange mid/high unit delivers 1,200 watts of class D power, and functions either as a standalone speaker or in combination with subwoofers from the LINEAR SUB series. Four different EQ presets – Bass Boost, Flat (LF), Flat (HMF) and Contour – allow the LINEAR 3 112 FA to deliver outstanding performance and easy handling in any situation.

Packs the muscular bi-amped punch of a 1,200 W class D power amp
Beautifully balanced, high-definition audio
135 dB SPL—that”s plenty of sound pressure for audiences of up to 500 (with the suitable L SUB 1500 A or L SUB 1800 A subwoofers)
No need for sophisticated audio skills: advanced DSP technology serves up top-notch sound every time
Intelligent Multiband Limiter ensures tonal integrity at every volume level
FIR crossover filtering for transparent midrange
Plenty of sound-shaping options with four EQ presets—Bass Boost, Flat (LF), Flat (MHF) and Contour
Very low total harmonic distortion, so no listening fatigue
System”s sound is easy to control and shape, even from the stage
On-target, directional PA aiming to reduce reflections off walls and ceilings

Techn. Data

Max SPL peak 135 dB half space (@ 10% THD)
Frequency response +/- 3 dB 58 Hz – 16 kHz
Frequency response -10 dB 49 Hz – 18 kHz
Power Rating 1200 W
Amplifier Class D - bi-amped
Active protection circuits Under-voltage, thermal, short circuit, over-current protection, subsonic filter, look ahead temperature control, peak, RMS and multiband limiters
Low/Mid Speaker 1x 15"
HF Driver 1"
Horn characteristics 90° x 55° CD horn
Crossover frequency 2.3 kHz FIR X-Over with 72 dB/oct.

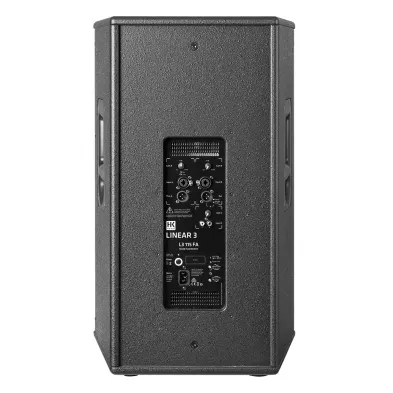

Connections 2x XLR Combo In bal., 1x Stereo RCA In, 2 x XLR Thru bal., 1x XLR Mix Out
Input Sensitivity +4 dBu @ Gain center-notched
Sensitivity switch Line/Mic Input A
Equalizer 2 EQ switches: Bass Boost/Flat & Flat/Contour

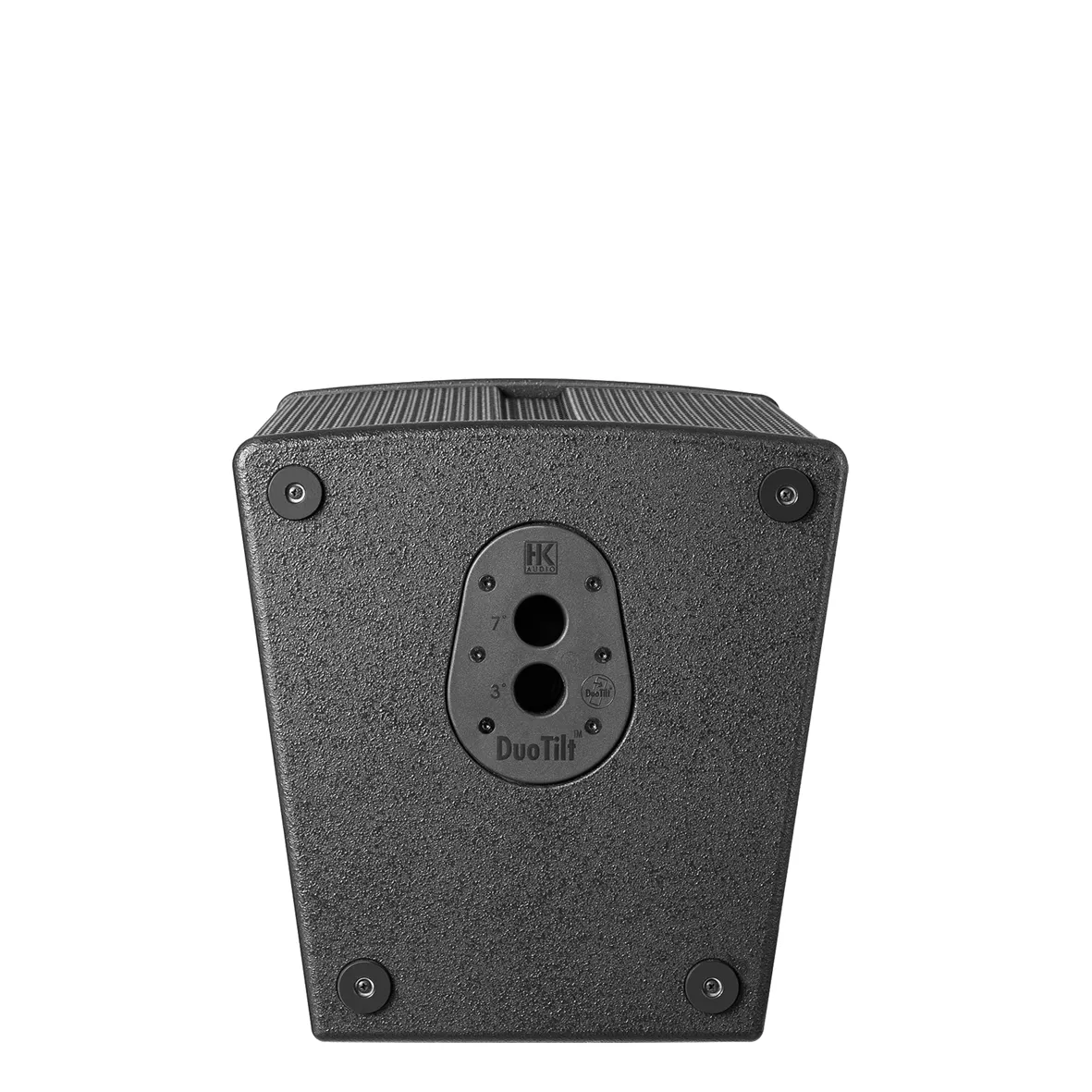

Pole mount HK Audio DuoTilt 3/7
Rigging points 4x M8
Handles 2x HK Audio MultiGrip
Enclosure 16 mm MDF
Grille 2 mm metal grille backed with black acoustic foam
Finish Acrylic enamel, black
Optional accessories Cover, Stereo Pole Add-on M20, Speaker Stand Add-on, Tilt bracket (TB-N, TB-NQ), Attachment point (AP-8), Tilt-Unit
Dimensions (WxHxD) 44 x 69 x 44,5 cm
Weight 27,9 kg / 61,5 lbs.
