Speaker Aktive M10 Turbosound

MILAN M10

600 Watt 2 Way 10" Full Range Powered Loudspeaker with KLARK TEKNIK DSP Technology for Portable PA and Installation Applications

The 600-Watt full range MILAN M10 is a portable 10" two-way powered loudspeaker featuring: two independent input channels with Mic and Line Inputs, selectable via a Mic/Line switch; a two-band master EQ (Bass, Treble); intelligent Limiting; and a Mix Out function for connecting additional powered loudspeakers for easy system expansion.

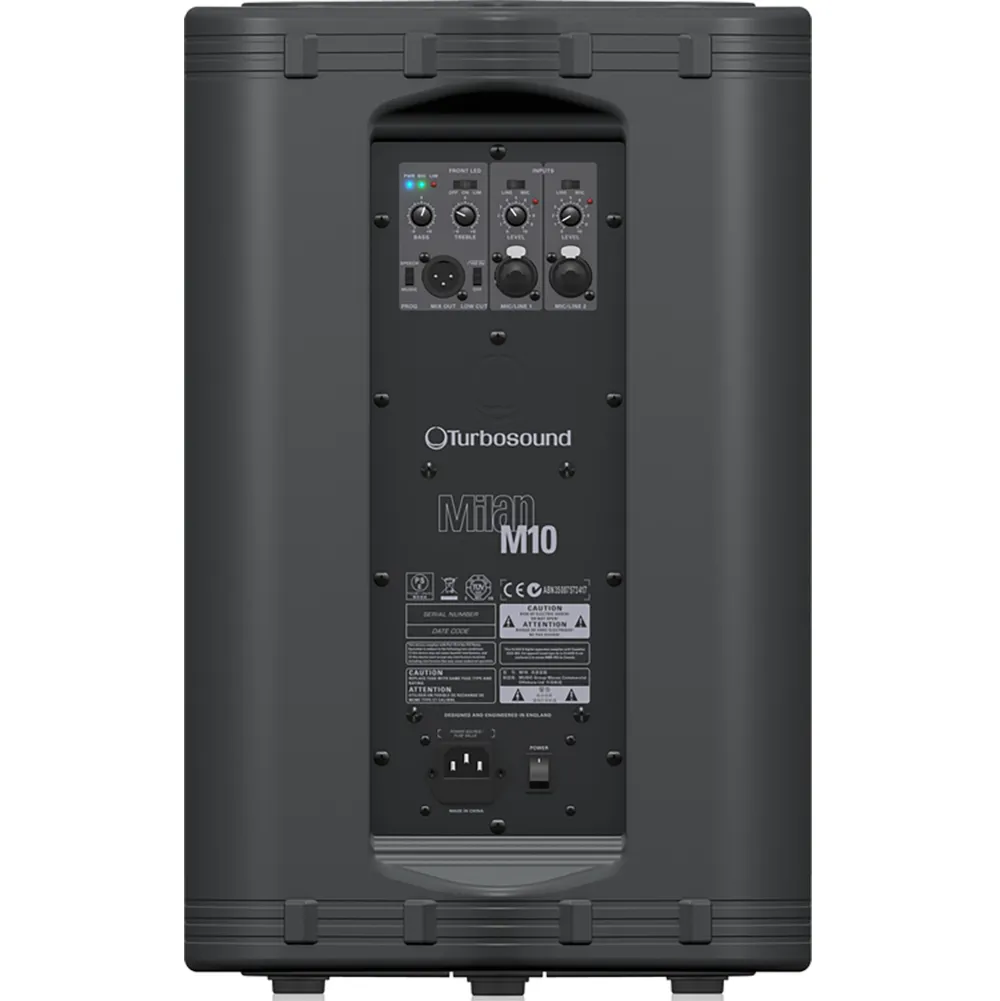

Designed for both portable and permanent install applications, the M10’s discrete inputs are each equipped with balanced, combination ¼ " jack/ XLR connectors and a Level control, making them ideally suited for a wide range of music sources, from low-impedance microphones, acoustic guitars and keyboards – to mp3 players and mixing consoles.

Class-D - Massive Power, Perfect Sound

Thanks to our revolutionary Class-D amplifier technology, we are able to provide enormous power and incredible sonic performance in an easy-to-use, ultra-portable and lightweight package. Class-D amplification makes all the difference, offering the ultimate in energy efficiency and eliminating the need for heavy power supplies and massive heat sinks. This amazing technology makes it possible to design and build extremely powerful products that are significantly lighter in weight than their traditional counterparts, while using less energy and protecting the environment. The lightweight Switch Mode Power Supply, coupled with the industry-leading KLARK TEKNIK Digital Signal Processing (DSP) module, provides dynamic equalisation and sophisticated limiting functions, ensuring optimal performance and long-term reliability.

600-Watt Output Power

With its 600 Watts of pristine digital output delivered through separately-powered drivers, courtesy of true bi-amping (two amplifiers per speaker system), the M10 delivers high-resolution sound that brings out the best in your music. While some of our competitors apply simple passive crossovers, which inaccurately separate the frequency spectrum and degrade driver performance, TURBOSOUND has gone the extra distance – driving each woofer and tweeter with a separate amplifier for impeccable signal integrity.

KLARK TEKNIK DSP – the Secret to Superb Sound

KLARK TEKNIK is recognised worldwide as one of the most prestigious British audio companies, with a 40-year pedigree and a TEC Lifetime Achievement Award to back it up. The Company has designed and manufactured products for world-class artists, and their legendary DN780 reverb processor is considered by leading audio engineers around the world as the industry standard. Check out their website to learn more about KLARK TEKNIK′s legendary heritage.

TURBOSOUND is proud to incorporate custom-engineered KLARK TEKNIK DSP into their products. From the instant your signal enters the MILAN M10, the built-in DSP (Digital Signal Processor) takes over, ensuring the highest possible signal integrity. Much more than just selective EQ enhancement, the M10’s 24-bit DSP analyses the incoming signal and intelligently applies specific filters to actually improve the sound quality. It is very much like having an audio engineer monitoring the input and output signals of each M10, dialing in the perfect EQ and constantly making subtle adjustments to the crossover, compressor/limiter and more – which all adds up to significantly better sound.

Custom-Engineered Drivers

Powerful, high-efficiency Class-D amplifiers and Switch Mode Power Supply technology coupled with state-of-the-art DSP functionality sounds very impressive – but what about the part of the system you actually hear? We are known internationally for making some of the best-sounding speaker systems in the world, so we take our drivers (woofers and tweeters) very seriously. Our LF and HF drivers are designed specifically for each application – it is what sets us apart from the competition. When you buy a MILAN M10 loudspeaker, you can rest assured the high-excursion 10" LF and 1" high-temperature dome compression drivers inside have been engineered to perform flawlessly in conjunction with every other element for truly professional results.

Features :

2 way full range powered loudspeaker for portable PA and installation applications
600 Watt power featuring KLARK TEKNIK Class-D technology
KLARK TEKNIK Digital Signal Processing for total system control
High excursion 10" low frequency driver with low mass voice coil for improved transient response
1" high temperature dome compression driver with extended high frequency reproduction
Converging elliptical waveguide provides wide dispersion and excellent pattern control
Speech/music switch featuring optimised equalisation for voice or music applications
Switchable 100 Hz high pass filter for subwoofer integration
Lightweight composite enclosure with black finish
Rugged powder coated perforated steel mesh grille
Dual angle pole mount for accurate audience coverage
Multiple internal rigging points for installation applications
10-Year Warranty Program*
Designed and engineered in the U.K.
