DESCRIPTION

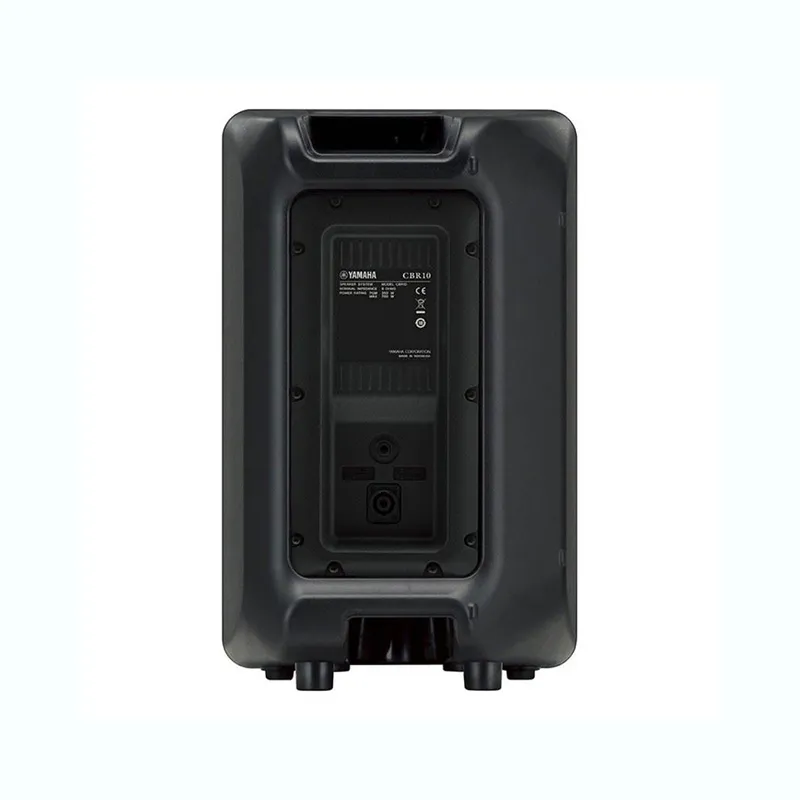

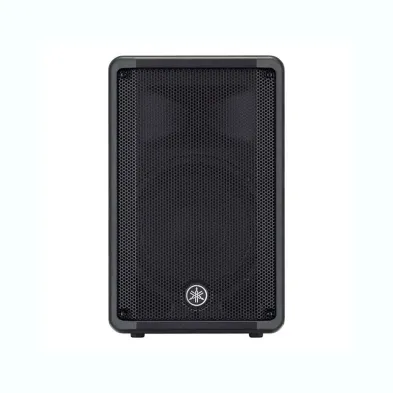

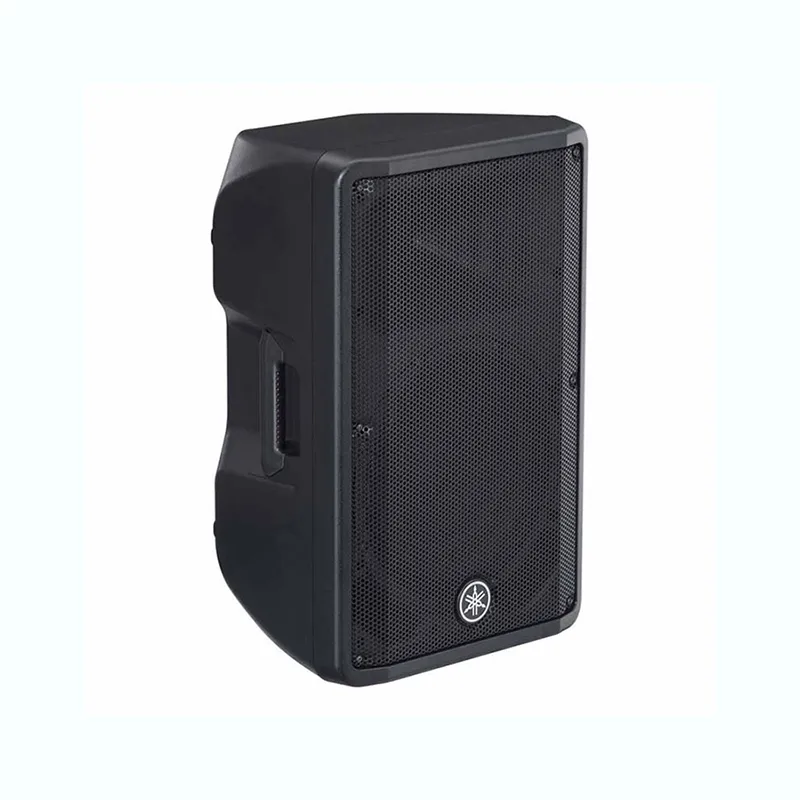

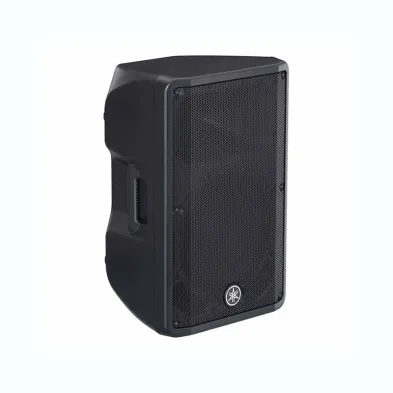

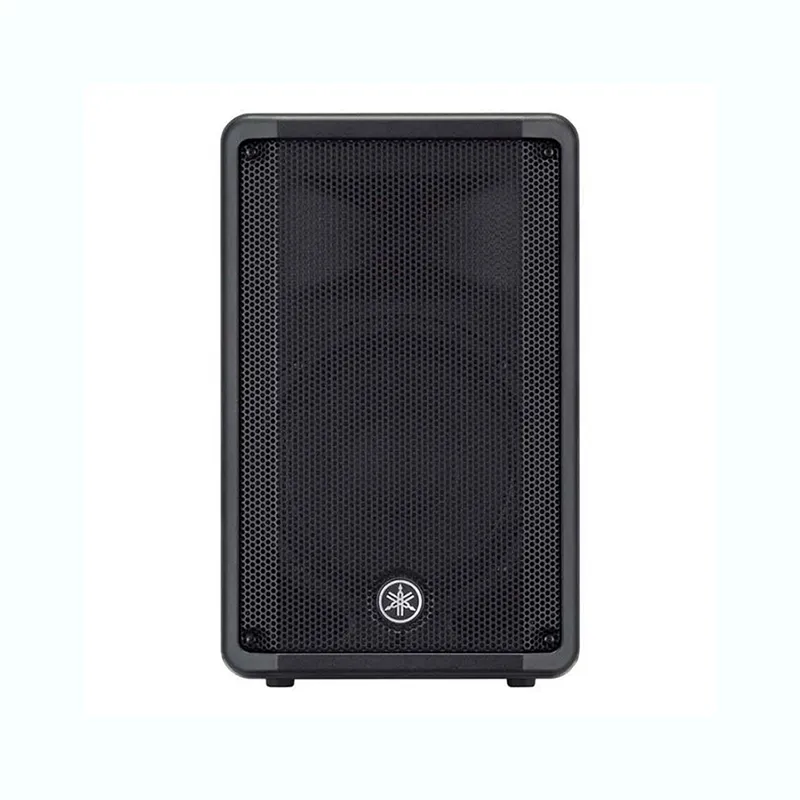

Speaker Passive CBR-10 Yamaha
Expect rich, clear sound and reliable performance from the Yamaha CBR10 passive loudspeaker. With a respectable 350-watts of RMS power handling, and 94dB SPL sensitivity, these loudspeakers boast impressive performance for their compact, portable nature. Live sound engineers at Sweetwater especially appreciate the CBR10's HF-protection circuit, which prevents speaker damage from excessive input. We also dig the smart form factor, which lets you use the CBR10 as either a mains speaker or on its side as a floor monitor. However you use it, expect stellar sound and performance you can trust with the Yamaha CBR10 passive loudspeaker.
Yamaha CBR10 10" Passive Loudspeaker at a Glance:
Ideal for small- to mid-size venues
Great sound at any volume level
Use as a main speaker or as a floor monitor
Ideal for small- to mid-size venues
With 350-watts of RMS power handling and lightweight components, the Yamaha CBR10 is perfect for small- to mid-size venues. Whether you're in a band, a gigging DJ, or run a sound-for-hire rig, the CBR10 will serve you well in a variety of applications.
Great sound at any volume level
The Yamaha CBR10 puts out full, punchy sound at any volume level thanks to two specific components. An extremely sensitive LF driver puts out powerful bass even when you're not driving the speaker hard. And when you do want to push your system to the max, an HF-protection circuit prevents excessive input signals from damaging the tweeter, so you get clear sound throughout the entire volume range.
Use as a main speaker or as a floor monitor
Yamaha designed the CBR10's cabinet with a 50-degree wedge angle. This allows you to place the speaker on its side and angle it up for use as a stage monitor. Especially if you're equipping your school or church with PA gear, you'll appreciate the dual-function versatility of the Yamaha CBR10.
Yamaha CBR10 10" Passive Loudspeaker Features:
Passive loudspeaker with lightweight plastic cabinet
Impressive 350W RMS power handling
1/4" and speakON inputs for flexible connectivity
HF-protection circuit prevents tweeter damage due to excessive signal levels
Highly-sensitive LF driver puts out full bass even at lower volumes
Tech Specs
Powered: No
LF Driver Size: 1 x 10"
HF Driver Size: 1"
Power Rating (Program): 350W
Peak Power Capacity: 700W
Impedance: 8 ohms
Inputs: 1 x 1/4", 1 x speakON
Frequency Range: 50Hz-20khz (-10 dB)
Crossover Frequency: 2.8kHz
Maximum Peak SPL: 123dB
Horizontal Coverage Angle: 90 Degrees
Vertical Coverage Angle: 60 Degrees
Enclosure Material: Plastic
Mounting Options: Pole Mount with 1.37" socket, 3 x M10 Fly Points
Height: 19.4"
Width: 12.1"
Depth: 11.4"
Weight: 20.7 lbs.
Manufacturer Part Number: CBR10
