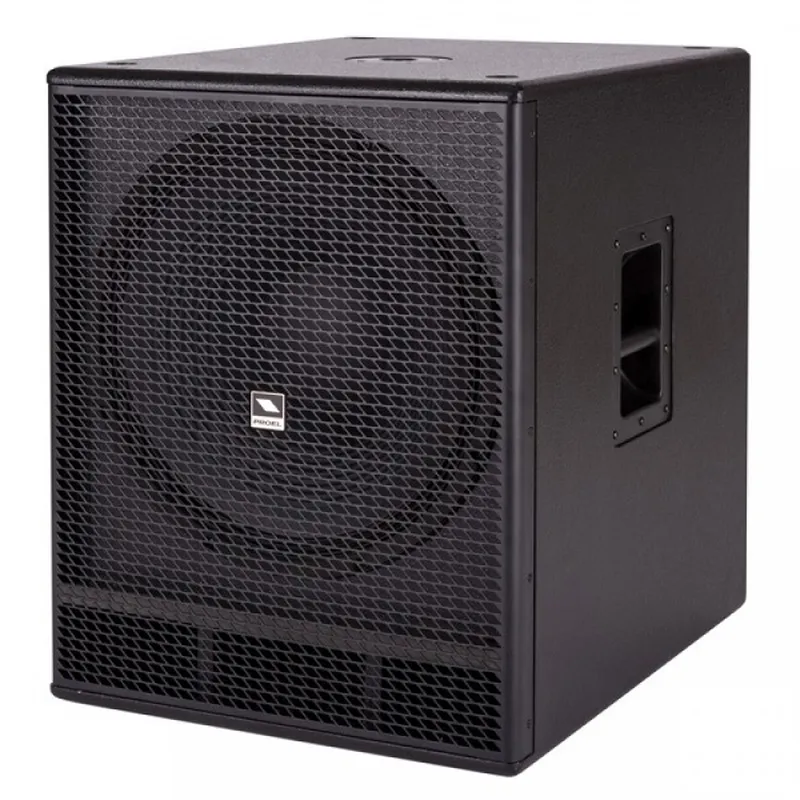

Subwoofer Passive SW118P Proel

The SW Series is a range of sub-woofers designed to complement PROEL full-range passive or active speakers. The variety of size, power and SPL offered by the five SW models provides the perfect low extension solution for any speaker model available in the PROEL range. All the SW models feature large VC woofers and band-pass or vented design, which provide very ‘punchy’, dynamic lows together with an extended low frequency response. The CLASS H or CLASS D amplifier modules can generate a massive amount of continuous power in a compact and reliable package. All the modules include a STEREO pre-amp section, 24dB/oct. crossover filters with selectable frequency and PHASE reverse switch. The cabinets are built with 15/18mm plywood and feature 2 or 3 metal handles and sturdy 75mm wheels for an easy transport (except SW110)

Proel SW118P General Specification:

18” woofer with 3” VC for a deep and extended response
1000 W peak power
Light-weight 500 W continuous Class D amplifier with SMPS
STEREO input, link and output
24 dB/oct. STEREO crossover filter with selectable frequency
PHASE REVERSE switch
SPL MAX 129 dB
Frequency response 36 Hz - 140 Hz
Passive version available (SW118P)
Plywood cabinet with two metal handles and four 75mm wheels
