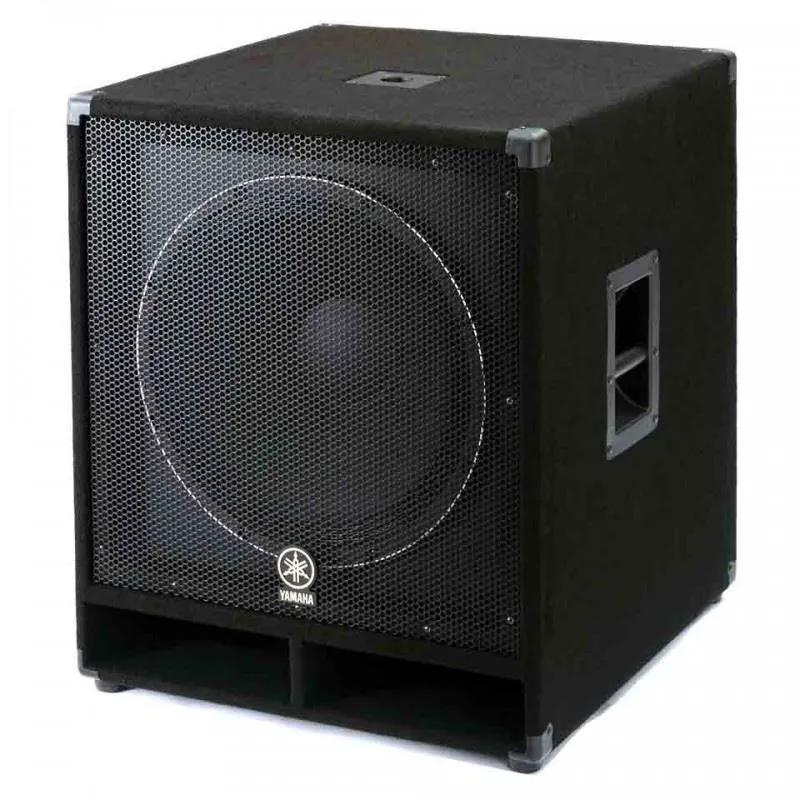

Subwoofer Passive SW118V Yamaha

Club V - The Evolution Of Sound Reinforcement!

Gigging bands, mobile DJs and houses of worship have helped make the first four generations of Yamaha Club Series Speakers incredibly popular. The refinements of generation V continue this success story: larger enclosures for improved low-frequency performance, improved drivers for higher power handling, redesigned crossovers, stronger grilles, and dual Speakon and 1/4" connectors.

Cabinet Construction

These cabinets are constructed of high quality particleboard, chosen for its high strength and elasticity, consistent void free makeup and light weight. Another great benefit of this material is its environmental friendliness. Made from southern yellow pine, this material is both abundant and quickly renewable. Accurate CNC routing machines are used to cut every part, assuring consistency with tolerances of one ten thousandth of an inch. Skilled technicians assemble each cabinet by hand, rejecting any defects. Whether covered in durable carpet or the elastomeric spray coating, heavy steel handles and sturdy pole sockets make moving and positioning easy.

World-Class Drivers

The drivers, or speakers in these cabinets, are custom made by Eminence Speaker Corporation to Yamaha's exacting tolerances. Woofers share design features like high strength curvilinear cones and Dupont Kapton voice coil formers. Oxygen-free copper voice coils and oversize strontium ferrite magnets are also used to provide high power handling and long life. The 15" and 18" drivers use cast aluminum frames to support the massive magnet structure eliminate flex and help dissipate heat. The compression driver that generates the high frequency sound uses a pure titanium diaphragm. This 2" dome is one of the largest in its class, allowing for very high output and low distortion, without the aid of cooling fluids. It's mated to a 90 degrees x 40 degrees custom designed CD (constant directivity) horn with excellent dispersion and response.

Features:

SW118V - Club V 18" Subwoofer
18" cast frame driver
Response down to 30Hz
Efficient Bass reflex design
Great for use with dance music

Tech Specs

Powered/Unpowered: Unpowered
LF Driver Size: 1 x 18"
Power Rating (Program): 600W
Peak Power Capacity: 1200W
Inputs: 2 x speakON, 2 x 1/4"
Impedance: 8 ohms
Frequency Range: 30Hz-2kHz (-10dB)
Maximum Peak SPL: 132dB
Enclosure Material: Plywood
Mounting Options: Floor
Height: 28.7"
Width: 24"
Depth: 25.2"
Weight: 85.9 lbs.
Manufacturer Part Number: SW118V
