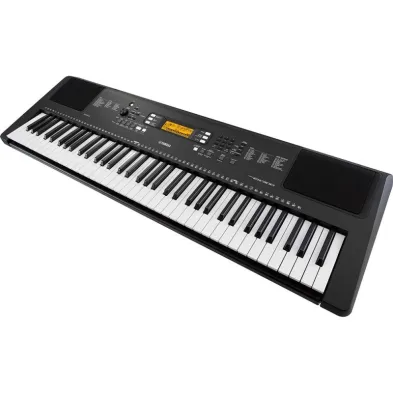

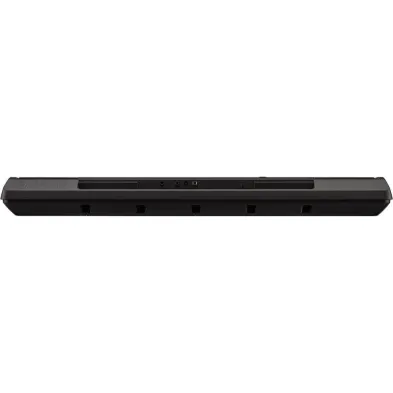

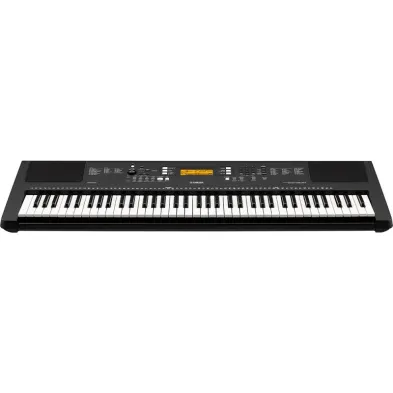

Keyboard PSR-EW300 Yamaha

Size/Weight

Dimensions Width 1,152 mm (45-3/8)
Height 118 mm (4-5/8)
Depth 369 mm (14-1/2)
Weight Weight 6.2 kg (13 lb, 11 oz) (not including batteries)

Control Interface

Keyboard Number of Keys 76
Touch Response Yes
Display Type LCD display
Backlight Yes
Language English
Panel Language English

Voices

Tone Generation Tone Generating Technology AWM Stereo Sampling
Polyphony Number of Polyphony (Max.) 48
Preset Number of Voices 574 (197 Panel Voices + 18 Drum/SFX kits + 20 Arpeggio + 339 XGlite Voices)
Compatibility GM GM/XGlite

Effects

Types Reverb 12 types
Chorus 5 types
Master EQ 6 types
Harmony 26 types
Functions Dual Yes
Split Yes
Panel Sustain Yes
Arpeggio 150 types
Melody Suppressor Yes

Accompaniment Styles

Preset Number of Preset Styles 165
Fingering Multi finger
Style Control ACMP ON/OFF, SYNC START, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL
Other Features Music Database 158
One Touch Setting (OTS) Yes
External Styles 10

Songs

Preset Number of Preset Songs 154 (including Touch Tutor: 10, Chord Study: 12, Chord Progression: 30)
Recording Number of Songs 5
Number of Tracks 2
Data Capacity Approx. 10,000 notes
Compatible Data Format Playback SMF Formats 0 & 1
Recording Original File Format

Functions

Registration Number of Buttons 9
Lesson/Guide Lesson/Guide KEYS TO SUCCESS, Lesson 1–3 (Listening, Timing, Waiting), Phrase Repeat, A-B Repeat, Chord Dictionary, Touch Tutor, Chord Study, Chord Progression
Overall Controls Metronome Yes
Tempo Range 11 - 280
Transpose -12 to 0, 0 to +12
Tuning 427.0–440.0–453.0 Hz (approx. 0.2Hz increments)
Duo Yes
Miscellaneous PIANO Button Yes (Portable Grand Button)

Storage and Connectivity

Storage Internal Memory Approx. 1.3MB
Connectivity DC IN 12 V
Headphones Standard stereo phone jack (PHONES/OUTPUT)
Sustain Pedal Yes
AUX IN Stereo mini jack
USB TO HOST 44.1kHz, 16bit, stereo
Amplifiers and Speakers
Amplifiers 2.5 W + 2.5 W
Speakers 12 cm × 2

Power Supply

Power Consumption 5 W (When using PA-130 AC adaptor)
Auto Power Off Yes
Power Supply Adaptors AC Adaptor PA-130, PA-3C, or an equivalent recommended by Yamaha
Batteries Six 1.5 V AA size alkaline (LR6), manganese (R6) or six 1.2 V AA size Ni-MH rechargeable batteries (HR6)

Accessories

Included Accessories Music Rest Yes
