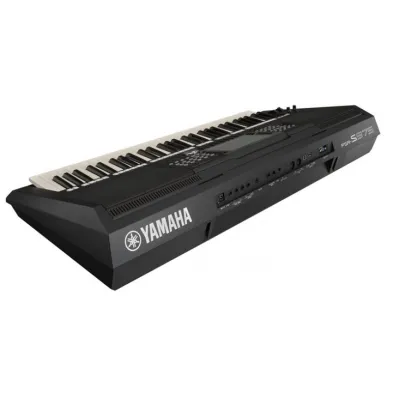

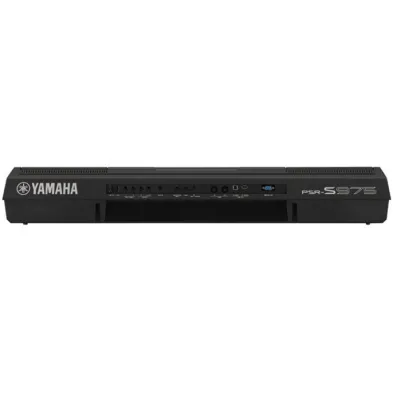

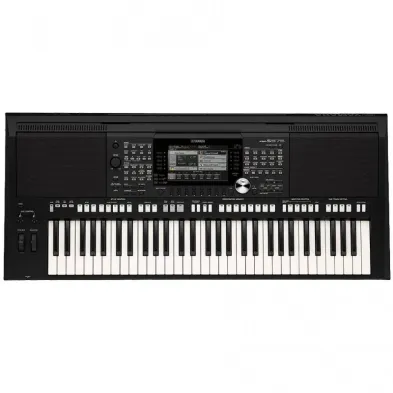

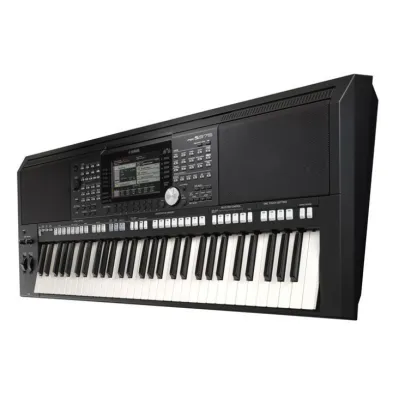

Keyboard PSR-S975 Yamaha

Color/Finish

Body Color Black

Size/Weight

Dimensions Width 1002 mm
Height 148 mm
Depth 437 mm
Weight Weight 11.6 kg

Control Interface

Keyboard Number of Keys 61
Type Organ, Initial Touch
Touch Response Hard1, Hard2, Medium, Soft1, Soft2
Other Controllers Pitch Bend Yes
Modulation Yes
Control Knobs 2 (assignable)
Display Type TFT Color Wide VGA LCD
Size 7 inch
Color Color

Language

English, German, French, Spanish, Italian
Panel Language English

Voices

Tone Generation Tone Generating Technology AWM Stereo Sampling
Polyphony Number of Polyphony (Max.) 128
Preset Number of Voices 1090 Voices + 55 Drum/SFX Kits + 480 XG Voices
Featured Voices 140 S.Art!, 30 Mega Voices, 32 Sweet! Voices, 74 Cool! Voices, 99 Live! Voices, 30 Organ Flutes!

Compatibility

XG Yes
GS Yes (for Song playback)
GM Yes
GM2 Yes
Expandability Expansion Voice Yes (approx. 768 MB max.)
Editing Voice Set
Part Right 1, Right 2, Left

Effects

Types Reverb 52 Presets + 3 User
Chorus 106 Presets + 3 User
DSP 322 Presets (with VCM) + 10 User
Master Compressor 5 Presets + 5 User
Master EQ 5 Presets + 2 User
Part EQ 27 parts
Others Mic/Guitar effects: Noise Gate x 1, Compressor x 1, 3Band EQ x 1
Arpeggio Yes
Vocal Harmony Number of Presets Vocal Harmony: 44, Synth Vocoder: 10
Number of User Settings 60 *The number is the total of Vocal Harmony and Synth Vocoder
Vocal Effect 23
Accompaniment Styles
Preset Number of Preset Styles 523
Featured Styles 40 +Audio Styles, 431 Pro Styles, 34 Session Styles, 15 DJ Styles, 3 Free Play
Fingering Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard
Style Control INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3
Other Features Music Finder 2,500 Records
One Touch Setting (OTS) 4 for each Style
Expandability Expansion Style Yes
Expansion Audio Style Yes (approx. 128 MB max.)
Compatibility Style File Format, Style File Format GE

Songs

Preset Number of Preset Songs 5 Sample Songs
Recording Number of Songs Unlimited (depends on the drive capacity)
Number of Tracks 16
Data Capacity approx. 300 KB/Song
Recording Function Quick Recording, Multi Recording, Step Recording
Compatible Data Format Playback SMF (Format 0 & 1), XF
Recording SMF (Format 0)
Multi Pads
Preset Number of Multi Pad Banks 188 banks x 4 Pads
Audio Audio Link Yes

Functions

Registration Number of Buttons 8
Control Registration Sequence, Freeze
Lesson/Guide Lesson/Guide Follow Lights, Any Key, Karao-Key, Your Tempo
Performance Assistant Technology (PAT) Yes
Demo/Help Demonstration Yes
Overall Controls Metronome Yes
Tempo Range 5 - 500, Tap Tempo
Transpose -12 – 0 – +12
Tuning 414.8 – 440 – 466.8 Hz
Octave Button Yes
Scale Type 9 types
Miscellaneous Direct Access Yes
Text Display Function Yes
Wallpaper Customization Yes
Voices Harmony/Echo Yes (with Arpeggio)
Panel Sustain Yes
Mono/Poly Yes
Voice Information Yes
Styles Style Creator Yes
Style Recommender Yes
OTS Information Yes
Songs Song Creator Yes
Score Display Function Yes
Lyrics Display Function Yes
Multi Pads Multi Pad Creator Yes
Audio Recorder/Player Recording Time (max.) 80 minutes/Song
Recording .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo)
Playback .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo), .mp3 (MPEG-1 Audio Layer-3: 44.1/48.0 kHz sample rate, 64-320 kbps and variable bit rate, mono/streo)
Lyrics Display Function Yes (.mp3 only)
Time Stretch Yes
Pitch Shift Yes
Vocal Cancel Yes

Storage and Connectivity

Storage Internal Memory approx. 13 MB
External Drives USB Flash Memory (via USB to DEVICE)
Connectivity Headphones Yes
FOOT PEDAL 1 (SUSTAIN), 2 (ARTICULATION), Function Assignable
Microphone Microphone/Guitar x 1
MIDI IN, OUT
AUX IN Stereo mini jack
LINE OUT L/L+R, R
RGB OUT Yes
USB TO DEVICE Yes
USB TO HOST Yes

Amplifiers and Speakers

Amplifiers 15 W x 2
Speakers 13 cm x 2 + 2.5 cm (dome) x 2

Power Supply

Power Supply PA-300C or an equibalent recommended by Yamaha
Power Consumption 20 W
Auto Power Off Function Yes

Accessories

Included Accessories Owners Manual, Online Member Product Registration, Music Rest, AC Adaptor(may not be include depending on your area. Check with your Yamaha dealer.)
