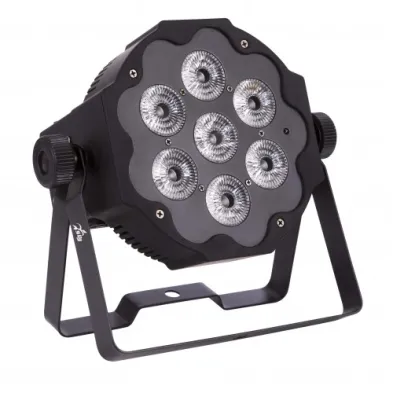

Par Led SLIMPAR 7DL Sagitter

SLIMPAR rewrites lighting techniques. The line was completely designed to meet the needs of occasional users; the main feature of the projectors of this new line are asy to use, as all the functions of the projector have been fully simplified and optimised, by adding the IR control (included) that facilitates all the operations, giving the possibility to recall “preset” programs or colours without using the DMX signal. The Slimpar line also offers different “sizes” and “sources” among the variety of colour possibilities, as well as the next generation DL (Dark Light) technology. By using these innovative 6 in 1 RGBWAU high efficiency LED sources it is possible to achieve ultraviolet light, which is now so popular in many dance events, while maintaining the many other colour shades reproduced by “full colour” RGBWA, RGBW, RGB sources. The body of all Slimpar projectors is made of ABS plastic ensuring maximum strength; the limited size offers various possibilities of use and suspended installation, thanks to the practical anchoring brackets and in the supported “light up” position, using the unique design of the projector directly.

Technical Specifications Slimpar 7 DL

Light source

7x12W led RGBWAU Full Color
LED lifespan: >50.000h
LED refresh frequency: >400Hz flicker free

Optic system

Beam angle: 25°
Luminous flux: 2290 lux @3mt (25°)

Color system

LED source 6 in 1 RGBWAU Full Color
Infinite chromatic possibilities and colour temperature control

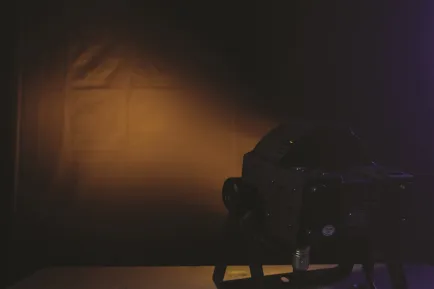

Color temperature control with Amber color

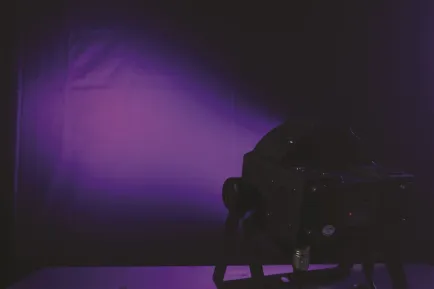

"Dark Light" technology LED UV (Ultra Violet)
2 color macros can be recalled by DMX

Effects

Linear Dimmer 0-100%
Electronic strobe: 1-20 flashes/s with adjustable speed

Control and programming

4 DMX configurations available: 1/6/7/10 channels
Protocol USITT DMX 512
Master / Slave mode
Sound mode with adjustable mic sensitivity
Static color mode with independent adjustment of strobe
Automatic mode with 2 different programs selectable from the display with independent adjustment of the speed and strobe
Color mode with 50 different pre-programmed color macros with independent adjustment of the strobe
IR remote controller included with possibility to recall colors or macros

Structure and cabinet

ABS housing, black color
Red LED display
Mounting points: double adjustable bracket
"light up" positioning without brackets
3-poles XLR in/out connection
IP rating: IP 20
Forced air fan cooling system

Power supply

Input Voltage: AC~100-240V 50/60Hz
Switching power supply unit
Power consumption 100W
Power IN/OUT connection with VDE socket
Power supply cable 1,5 mt included
Max 6 pcs linkable @240V

Weight and dimensions

Net weight: 2,1 kg
Dimensions: 257x130x240 mm
