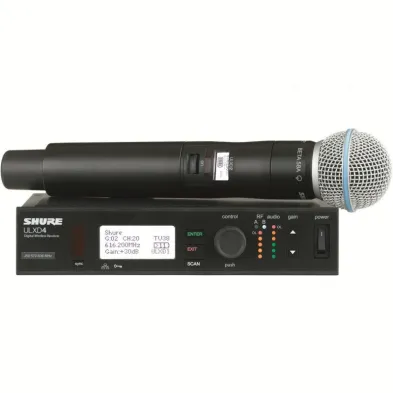

Shure ULXD24/BETA58 Handheld Wireless System

Shure ULX-D Digital Wireless offers uncompromising 24-bit audio clarity and extremely efficient RF performance with single, dual, and quad channel receivers for any size professional sound reinforcement application.

Scalable, intelligent hardware delivers the best performing digital wireless available, with a wide selection of trusted Shure microphones to choose from. Unmatched spectrum efficiency enables a dramatic increase in the number of simultaneous active transmitters on one TV channel, with rock-solid signal over the entire range. Optional rechargeable accessories eliminate the need for disposable batteries while offering extended run time and metering accuracy in hours and minutes.

Featuring a BETA58A® handheld wireless microphone transmitter, ULXD24/BETA58 combines professional features with simplified setup and operation.

Included:

ULXD2/BETA58
ULXD4 receiver
Power supply
2 AA batteries
Two 1/2 wave antennas
2 BNC cables
Zipper bag
2 BNC bulkhead adapters
Rackmount kit
User guide
Wireless frequency band: K51, TV channels 38 - 45 (606 - 670 MHz) NL standard band. Also available in other frequencies.

Technical specifications

Transmitter Type: Handheld
Dimensions: 256 mm x 51 mm (10.1 in. x 2.0 in.) L x Dia.
RF Output Power: 1 mW, 10 mW, 20 mW
Battery, endurance: Shure SB900 Rechargeable Li-Ion: >12 hours or AA batteries
Weight: 340 g (12.0 oz.), without batteries

ULXD4 Specifications

Weight: 913 g
Height x Width x Depth: 197.0 × 171.0 × 42.0 mm
Transmission: Digital in UHF TV band
Type of Power Supply: External
Receiver Housings: Metal
Active Antenna Possible: Yes
Bias via BNC: Yes
Encryption: 256 Bit AES
High Density Mode: Yes
Interference Detection: Yes
Remote Control: Yes
DANTE Audio Network Interface: No
Scan Features: Channel Scan, Group Scan, Spectrum Scan
Sync Features: IR Sync
Detachable Antennas: Yes
Logic: No
Cascade: No
Rack Hardware: Included Rack mounts brackets
Receiver Displays: Multi-function LCD
Receiver type: Single
Included antenna: External 1/2 wave
Battery Status: Leveled battery life indication, HH:MM (Hours and minutes)
Line Mic Switch: Yes
Image Rejection: 70 dB, typical
RF Sensitivity: -106 dBm, for 12dB SINAD, typical
Phantom Power Protection: Yes
Spurious Rejection: 80 dB, typical
Antenna Input Impedance: 50 Ω
