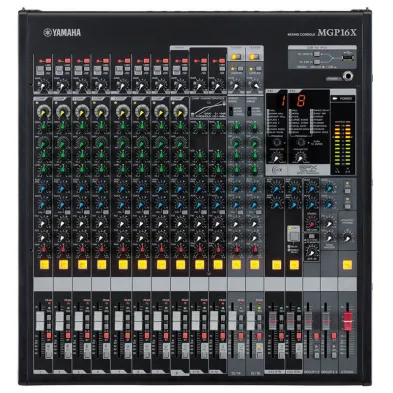

Mixer MGP16X Yamaha
Mixing capability
Mixing channels: 16 Line Inputs (8 mono and 4 stereo)
GROUP: 4 GROUP Buses + ST Bus
AUX: 2 AUX Sends + 2 FX Sends
Input channel functions: Compressor CH1-8,HPF(100Hz 12dB/oct), CH EQ(MONO) ±15dB(Max.):High 8kHz shelving/ Mid 250Hz-5kHz peaking(CH1-8,13-16)/ Low 125Hz shelving, CH EQ(STEREO) ±15dB(Max.):High 8kHz shelving/ Mid 2.5kHz peaking(CH9-12)/ Low 125Hz shelving
On-board processors: FX1:REV-X(8 PROGRAM, PARAMETER control), FX2:SPX (16 PROGRAM, PARAMETER control)
I/O
Mic inputs MIC: 10
Phantom power: 48V phantom power per channel
Line inputs LINE: 8mono+4stereo, CH INSERT: 8, RETURN: 1stereo, 2TR IN: 1 stereo
Digital I/O: USB Audio USB IN/OUT: iPod, iPhone exclusive
General specifications
Total harmonic distortion: 0.02% (20Hz-20kHz@ +14dBu)
Frequency response: +0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz
Hum & noise level: Equivalent input noise -128 dBu (20Hz–20 kHz, Rs=150Ω, Input Gain = Maximum)
Residual output noise -102 dBu (20Hz–20 kHz, Rs=150Ω, Input Gain = Maximum)
Crosstalk: -74dB @ 1kHz
Power requirements: 100-240V 50Hz/60Hz
Power consumption: 55W max
Dimensions W x H x D: 17.6 x 5.62 x 19.5"
Net weight: 19.85 lb.
