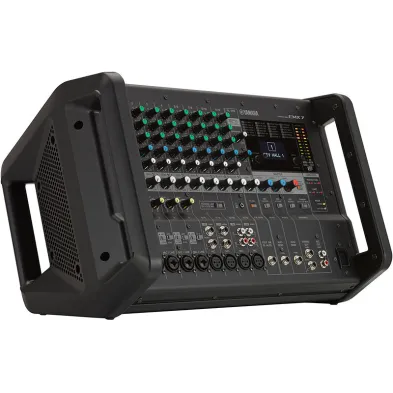

Power Mixer EMX7 Yamaha

The EMX7 powered mixer was designed for musicians, performers, or public speakers who put a premium on sound quality and convenient operation, and are ready to take their sound reinforcement to the next level. Add speakers and a microphone and you have a fully functioning, extremely portable, and reliable sound system with all the tools you need to mix, process, and deliver your audio just the way you want, anywhere you want.

Class-D Amplifier

The EMX7 features a built-in high-efficiency power amplifier of 2 x 710W of output power. Despite its low power consumption, this amp is capable of very high volume output, yet still remains surprisingly lightweight. It is equipped with onboard overload protection function to improve reliability and prolong component life and performance quality.

Complete Range of Input & Output Channels

The EMX5 is equipped with four mono input channels and four mono/stereo input channels, allowing up to 8 microphones and line-level devices such as keyboards and portable playback device to be connected to each channel. In addition, channel 4 can be used with Hi-Z inputs to connect instruments such as guitars or basses directly. It is also equipped with 2 AUX SEND connections for a monitoring system or external effect devices, REC OUT unbalanced RCA pin output jacks to connect an external recorder, and STEREO OUT TRS phone jacks to output the mixed stereo signal.

Onboard Feedback Suppressor

EMX7 is equipped with a Feedback Suppressor that utilizes a unique Yamaha digital technology to instantly eliminate annoying feedback with the single switch of a button, which utilizes a seven-band notch filter.

Speaker Processor and Preset

The speaker processor function allows you to select an appropriate setting to match the particular speakers you’re using. It features presets specifically tuned for each model in Yamaha’s extensive lineup of passive speakers, including CBR, Club, A and R series. This allows users to optimize speaker performance and save even more time during system setup. It also includes a bass boost function that can be enabled to significantly bring out the lower frequencies.

3-band Equalizer Control

With individual knobs you can adjust the [HIGH], [MID], and [LOW] audio frequencies. You can operate instantly turning the control to amplify (boost) and attenuate (cut) the corresponding frequency band.

1-knob COMP

EMX5 is equipped with the popular 1-knob COMP function used in MGP and MG series models. By simply operating a single control, it is possible to get optimal compression for vocals and instruments. As the [COMP] control is turned to the right, the threshold, ratio, and output gain are adjusted simultaneously.

Comprehensive, Professional Effects and Signal Processing

EMX7 is equipped with a powerful, comprehensive DSP section that provides a total of 24 different effects that are in the same league as our famed SPX effect processor series used by professionals. It is possible to add reverb and delay effects that simulate the sound of different performance environments, such as concert halls and small clubs.

FEATURES

Format
Analog/digital:Analog
Number of channels:12
Busses/groups:2
Aux sends:2
Powered:Yes, 1420W
Inputs
Total inputs:12
Mic preamps:8
XLR/TRS combo jacks:4
XLR only jacks:4
1/4" only jacks:4
S/PDIF in: No
ADAT/optical in:No
RCA in:2 Stereo pair
USB:No
Outputs
Total outputs: 2 St, 2 Aux, RCA
RCA (unpowered)1 Stereo pair
1/4” out:2
FireWireNo
ADAT/optical out:0
SpeakION2
USB:No
Other Connectivity
Connections:Audio
MIDI I/O:No
Headphone output(s):1
Wi-FiNo
Word-clock I/O:No
I/O expansion:No
Onboard effects
Compression:Yes
Reverb:Yes
Delay:Yes
Chorus/flange:Yes
Equalization
Type:Shelving
EQ bands:3
Master graphic:No
Other
Width:18.25"
Height:12.1"
Depth:12.75"
Weight:20.9 lb.
Automation:No
Fader type:Rotary
Motorized faders:No
Bundled software:No
