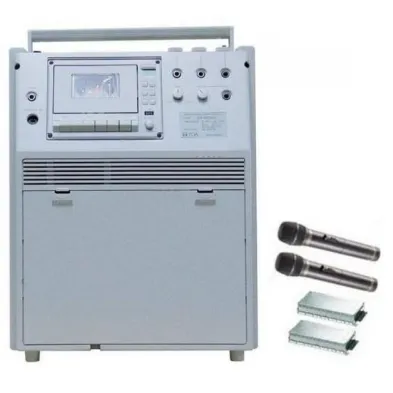

Portable Speaker ZW-G810CU TOA

Power Requirement : AC mains, 220V, 50/60Hz, Dry Cells ; 8 pcs (R20P or “D”)
Rated Output : AC ; 15W (Max 20W), DC ; 6W
Frequency Response : 70 ~ 10,000Hz (±3dB)
Total Harmonic Distortion : Less than 3% (rated output)
Input : Wired mic ; Mic 1,2 : -54dB, 600Ω (switchable with wireless microphone) / AUX : -20dB, 500kΩ
Output : External speaker : 8 ~ 16Ω / over 20W at rated input ; “Internal speaker and external speaker” or “external speaker only” (selectable)
Line Out : 0dB, 600Ω
S/N ratio : Over 70dB (rated output)
Antenna : Rod antenna
Finish : ABS resin, light gray
Accessory : Dust cover, fuse, single pole plug, plug for connection to external speaker, plug for connection to external power supply, operating instruction manual, warranty card

Wireless Tuner (ZTU-G810)

Receiving Frequency : 801.525, 806.375, 807.750, 813.975, 816.375, 821.275 MHz
Antenna Input : 50Ω
Local Oscillation : X’tal Control
Output Level : 0dB

Wireless Microphone (ZM-G810)

Microphone Element : Dynamic Microphone Unit, Cardioid Characteristic
Frequency Range : 801.525, 806.375, 807.750, 813.975, 816.375, 821.275 MHz
Battery : Alkaline x 2
Finish : Alluminium Casing Body with Black Rubber Painting

Cassette Deck Section (ZU-1800C)

Reproduction System : Auto-reverse
Track System : 2-track/1 channel (monaural)
Output Level : 300mV (with 1KHz, 0dB original tape)
Usable Tape : Normal tape
Recording Method : AC bias
Erasing Method : AC erasure
Tape Speed : Normal 4.55 cm/sec, Minimum 4.17 cm/sec, Maximum 5.00 cm/sec
Wow and Fluther : 0.2% WRMS
Fast Forward/Rewind Time : Approx. 100 sec. (C-60 tape)
