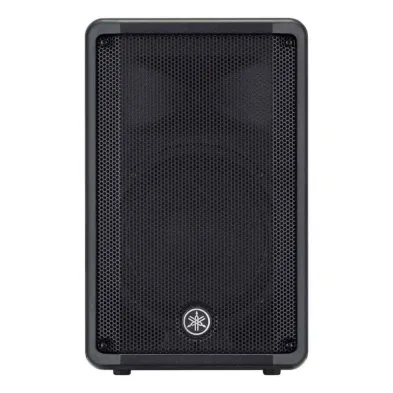

Speaker Passive CBR-15 Yamaha

Expect rich, clear sound and reliable performance from the Yamaha CBR15 passive loudspeaker. With a respectable 500-watts of RMS power handling, and 96dB SPL sensitivity, these loudspeakers boast impressive performance for their compact, portable nature. Live sound engineers at Sweetwater especially appreciate the CBR15's HF-protection circuit, which prevents speaker damage from excessive input. We also dig the smart form factor, which lets you use the CBR15 as either a mains speaker or on its side as a floor monitor. However you use it, expect stellar sound and performance you can trust with the Yamaha CBR15 passive loudspeaker.

Yamaha CBR15 15" Passive Loudspeaker at a Glance:

Ideal for small- to mid-size venues
Great sound at any volume level
Use as a main speaker or as a floor monitor
Ideal for small- to mid-size venues
With 500-watts of RMS power handling and lightweight components, the Yamaha CBR15 is perfect for small- to mid-size venues. Whether you're in a band, a gigging DJ, or run a sound-for-hire rig, the CBR15 will serve you well in a variety of applications.

Great sound at any volume level

The Yamaha CBR15 puts out full, punchy sound at any volume level thanks to two specific components. An extremely sensitive LF driver puts out powerful bass even when you're not driving the speaker hard. And when you do want to push your system to the max, an HF-protection circuit prevents excessive input signals from damaging the tweeter, so you get clear sound throughout the entire volume range.

Use as a main speaker or as a floor monitor

Yamaha designed the CBR15's cabinet with a 50-degree wedge angle. This allows you to place the speaker on its side and angle it up for use as a stage monitor. Especially if you're equipping your school or church with PA gear, you'll appreciate the dual-function versatility of the Yamaha CBR15.

Yamaha CBR15 15" Passive Loudspeaker Features:

Passive loudspeaker with lightweight plastic cabinet
Impressive 500W RMS power handling
1/4" and speakON inputs for flexible connectivity
HF-protection circuit prevents tweeter damage due to excessive signal levels
Highly-sensitive LF driver puts out full bass even at lower volumes

Tech Specs

Powered: No
LF Driver Size: 1 x 15"
HF Driver Size: 1.4"
Power Rating (Program): 500W
Peak Power Capacity: 1000W
Impedance: 8 ohms
Inputs: 1 x 1/4", 1 x speakON
Frequency Range: 46Hz-20kHz (-10 dB)
Crossover Frequency: 2kHz
Maximum Peak SPL: 126dB
Horizontal Coverage Angle: 90 Degrees
Vertical Coverage Angle: 60 Degrees
Enclosure Material: Plastic
Mounting Options: Pole Mount with 1.37" socket, 3 x M10 Fly Points
Height: 27.6"
Width: 17.9"
Depth: 14.9"
Weight: 39 lbs.
Manufacturer Part Number: CBR15
