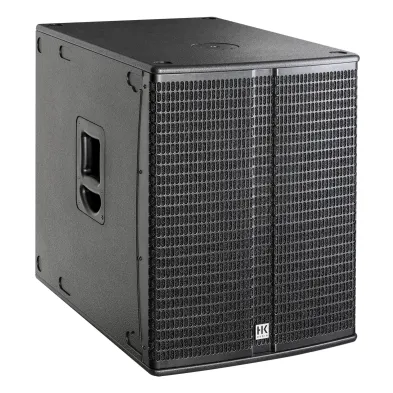

L SUB 1800 A – A LOW-END BOOST FOR THE LINEAR SERIES

Powered subwoofer, 1200W, 1x 18″ speaker, 132 dB max. SPL, rugged wood enclosure, ideal add-on to mid/high units from the LINEAR 3 family

Description :

LINEAR SUB 1800 A – an 18” bass reflex subwoofer – is packed full of low end. Unrivaled power, SPL of up to 132 dB and thumping bass (all the way to 38 Hz) make this powered sub the ideal add-on to mid/high units from the LINEAR 3 family when you need just a little more loudness and low end. LINEAR SUB 1800 A can also be used in combination with mid/high units from the LINEAR 5 family, or as a bass extension to the ELEMENTS BIG BASE system.

Compact powerful subwoofer
1200 watts
1x 18″ Speaker
132 dB Max SPL Peak @ 10% THD (halfspace)
Ideal add-on to mid/high units from the LINEAR 3 family
Can also be used in combination with LINEAR 5 mid/high units, or as a bass extension to the ELEMENTS BIG BASE system
Rugged wood enclosure
Adjustable X-over frequency
Integrated HK Audio MultiGrips

Techn. Data

Max SPL 130 dB half space (@ 10% THD)
Max SPL peak 132 dB half space (@ 10% THD)
Max SPL calculated 133 dB half space
Frequency response +/- 3 dB 42 Hz – X-Over
Frequency response -10 dB 38 Hz – X-Over
Power Rating 1200 W
Amplifier Class D
Active protection circuits Under-voltage, thermal, short circuit, and over-current protection, Subsonic 24 dB/oct. peak limiter
LF Speaker 1x 18"
Cut-off Frequency active 100/120 Hz variable with 24 dB/oct.

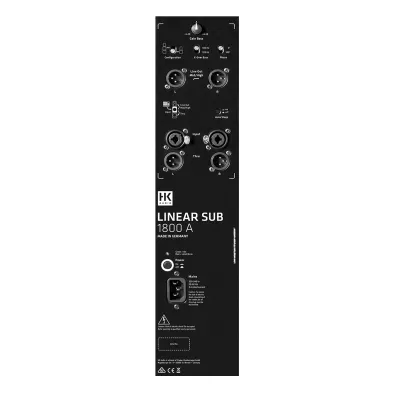

Connections 2x XLR Combo In bal., 2 x XLR Thru bal., 2x XLR-Mid/High Out
Input Sensitivity +4 dBu @ Gain center-notched
Pole mount 1x M20 (K&M)

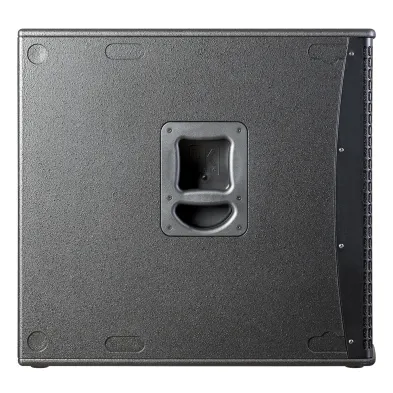

Handles 4x HK Audio MultiGrip
Enclosure MDF 16 mm
Grille 2 mm metal grille backed with black acoustic foam
Finish Acrylic enamel, black
Optional accessories Protective cover, Stereo Pole Add-On M20, tilt unit, 100 mm casters
Dimensions (WxHxD) 51,0 x 67,0 x 72 cm
Weight 42 kg / 92,6 lbs.
