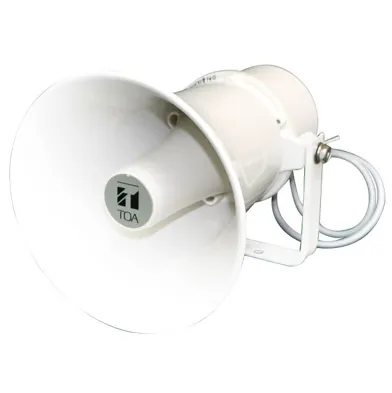

Speaker Horn ZH-615RM TOA

Rated Input Selection / Impedance 670Ω (15W), 1kΩ (10W), 2kΩ (5W), 3.3kΩ (3W)
Sound Pressure Level 110dB (1W, 1m at 500Hz to 2.5kHz peak level)
Frequency Response 280Hz – 12.5kHz
Polarity Hot : Black
Com : White
Operating Temperature -20o to +55o C
(must be free from dew condensation)
Finish Horn flare: Alumunium, Off white
Reflector horn and rear cover: ABS resin, off-white bracket
Screws and bolts: steel
Speaker cable : Polyvinyl chloride insulated cabtyre cable ( 6mm in diameter, 400 mm in length )
Dimensions Diameter 196 (W) x 240 (D)mm
Weight 1.1 kg
