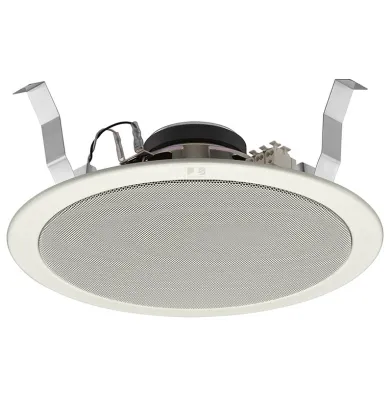

Speaker Ceiling ZS-2852 TOA

Speaker Component 8*(20cm) coaxial 2-way cone-type
Rated Input 100V Line : 15W, 70V LINE : 15W
Impedance 100V LINE : 670 ohm (15W), 1 kohm (10W), 2kohm (5W), 3.3 kohm (3W),
70V LINE : 330 ohm (15W), 670 ohm (7.5W), 1 kohm (5W), 2kohm (2.5W), 3.3 kohm (1.5W)
Sound Pressure Level (1W/1m) 96 dB
Frequency Response 45-20.000Hz
Input terminal Push-Interminal
Finish Baffle: Steel plate net, off-white, paint/Grille : Surface-treated steel plate Net, off-white, paint
Dimensions Ø280 x 92 (D)mm ( Ø11.02” x 3.62”)
